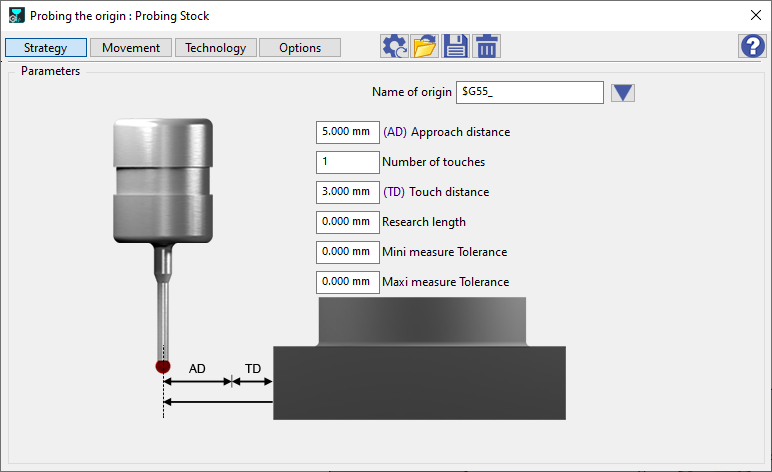

Cycle: Alignment of Part, Origins on Stock, Control of the Part
|
Name of origin ( For Alignment of part, Origins on stock) |
Define an origin name for the probing cycle. Use the same origin name for other probing cycles to link the results for a single origin. |
|
|
Approach distance (AD) |
Defines the distance the probing tool keeps before starting the probing operation. |
|
|
Number of touches |
Defines the number of times the probing operation is repeated for a point to complete the probing of that point. |
|
|
Touch distance (TD) |
The distance from which the probe approaches the part at the required touch point. |
|
|
Research length |
This is the maximum distance the probe will move/travel to search for the contact point. |
|
|
Mini measure Tolerance |
Minimum allowed deviation from the nominal value during the probing process/ measurement. |
|
|
Maxi measure Tolerance |
Maximum allowed deviation from the nominal value during the probing process/ measurement. |
|
|
Variable measure ( Only for Control of Part) |
Variable to use for the measure. |
