Finish Reworking

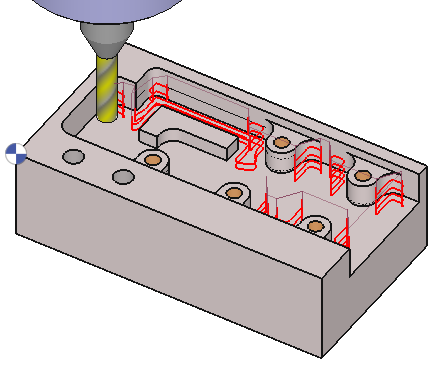

This cycle is a contouring-type operation used to rework material left after pocket roughing.

Classic process for pocket machining: Pocket (or Pocket+Contour) + Finish Rework + maybe Finish Contour.

Pocket Rework is similar to the Finish Rework, with the difference of being a pocket operation.

Key points

It is necessary to fill the parameters 'Reference Diameter' and 'Stock left in roughing' in the strategy page.
Organization: ability to machine multiple pockets and subpockets by pockets, by areas or by Z levels.

Dialog Area	Parameters
Toolpath Strategy	Machining Direction	Organization
Toolpath and Compensation	Toolpath	Corner type
Toolpath and Compensation	R max coef
Tool and Stock Allowance in Pocket	Stock left in roughing	Reference diameter
Calculation of Z steps	Z Step (Ap)	Constant Z Step
Allowances	XY Stock allowance	Z Stock allowance
Overcutting	Open area…

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Curves Computing	Curve tolerance	Curve segmentation
Top, Bottom and Sides	Top: Radius/Height	Top: Chamfer angle
	Side: Taper	Scallop value
	Bottom: Radius/Height	Bottom: Chamfer angle
	Reading on solid
