Threading

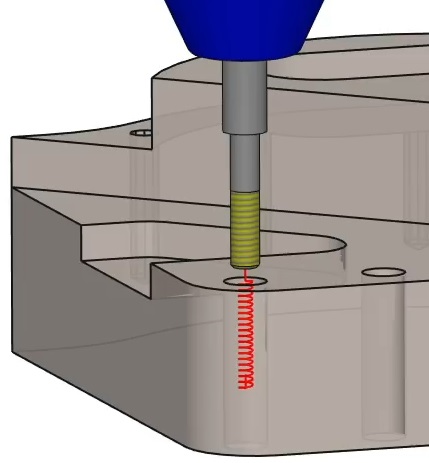

This cycle realizes inside threads only with a helicoïdal contouring toolpath.

Two types of tools are available, the thread cutter and the thread bar. In both cases, the pitch is defined in the tool page.

Key Points

Threading: You can choose the threading characteristics with (Outside threading, Threading pitch, Threading direction).
Toolpath: you can choose the appropriate machining toolpath with the options Machining type, Machining or Toolpath.

Strategy Parameters

Dialog Area	Parameters
Altitudes and Depths	Altitude/Reference	Depth/Reference
	Depth	Z offset
	Retract
Threading	Outside threading	Threading pitch
Threading	Thread direction
Toolpath	Machining type	Machining
Toolpath	Toolpath
Extra options	Starting angle	Thickness at diameter
	Increment at diameter	Diameter allowance
	Taper angle

Movement Parameters

Dialog Area	Parameters
Safety (in Z)	Rapid plane alt.	Safety distance
Approach and return in Z	Approach altitude	Retract altitude
Approach and return in Z	Return altitude
Leadin and leadout in XY	Plunge off-center
	Lead in arc radius	Lead out arc radius
	Leadin radius angle	Leadout radius angle
	Z of leadin radius	Z of leadout radius

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Feedrate/tooth	Spindle direction
	Level	Spindle speed
	Feedrate	Plunge feed
	Sp. speed range	Specific coolant
	Coolant number
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compensation number	Diameter compens. Nb
Users Fields	Comment	Control Device
Users Fields	Milling Set

Options Parameters

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Conicity Decomposition	Tolerance of segmentation	Decomposition
