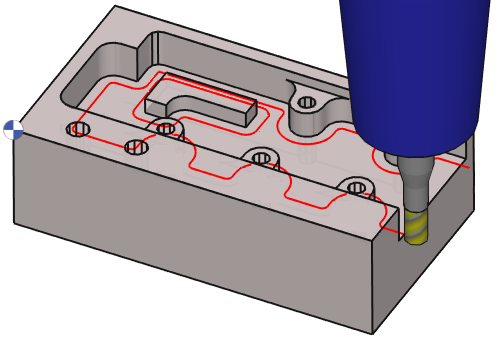

Finish Contour

This cycle is a contouring cycle with compensation done after a pocket roughing. It is based on the geometry shown while selecting the pocket cycle.

Classic process for pocket machining: Pocket (or Pocket+Contour) + Pocket Rework + maybe Finish Contour.

Key points

Automatic and safety calculation of the lead in and lead out of the tool.
Organization: ability to machine multiple pockets and subpockets by pockets, by areas or by Z levels.
Continuous plunge mode: if Yes is chosen, ability to program a last pass at the bottom.

Dialog Area	Parameters
Toolpath Strategy	Machining Direction	Organization
Toolpath and Compensation	Toolpath	Corner type
Toolpath and Compensation	Finishing overlength	R max coef
Tool and Stock Allowance in Pocket	Stock left in roughing	Reference diameter
Calculation of Z steps	Continuous toolpath	Final Pass at constant Z
Calculation of Z steps	Constant Z Step	Z Step (Ap)
Allowances	XY Stock allowance	Z Stock allowance
Overcutting	Overcutting	Open area…

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Curves Computing	Curve tolerance	Curve Segmentation
Top, Bottom and Sides	Top: Radius/Height	Top: Chamfer angle
	Side: Taper	Scallop value
	Bottom: Radius/Height	Bottom: Chamfer angle
	Reading on solid
Toolpath Options	Break the outside corners	Maxi Angle
