Flat Face Finish

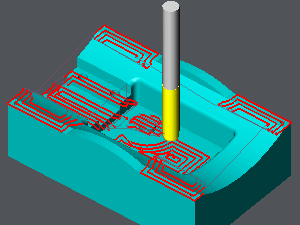

GO2cam researches the topological areas where the slope is null, and apply a 2D pocket cycle to these areas.

This cycle is a complement of cycles working on Z levels.

This finishing respects the Z allowances on the flat faces by applying the same allowance than the one defined in the previous cycle (roughing or finishing done before).
This cycle must be avoided before the complete machining of vertical faces to prevent the milling cutter from encountering excessive material. Consequently, a roughing operation, a finishing operation, or a 2D contouring must be programmed prior to this cycle to prevent tool breakage or marking of the vertical faces.

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Toolpath Optimization	Rework Area Tolerance	Treat maxi stepover
	Feedrate reduction coef	Maxi stepover coef
	Type of HSM radius	Radius of HSM loop
	Radii on contour
Curves Computing	Curve tolerance	Curve segmentation
Toolpath Computing	Decomposition of arcs of toolpath	Arcs decomposition tolerance

Key Points
