Facing Pocket


Sweeping toolpath applied on faces and pockets. The profile must be closed profile, it can also be the stock directly.

Key Points

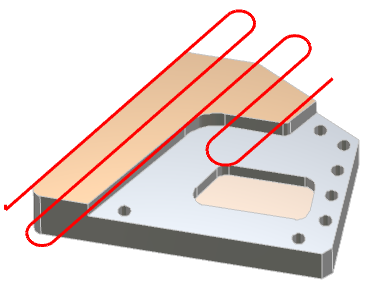

  • GO2cam automatically determines which is the best sweeping angle according to the selected face of solid.

  • with Rotating Machining: the toolpath is optimized by giving a rotary toolpath which reduces the rapid retracts, with still the respect of machining direction.

  • Pockets avoidance: either the facing toolpath is calculated so that it avoids the pocket, or it goes through the pocket with Fmax value.

New behavior of the option Z repeat, that enables to repeat exactly the same toolpath from a Z step to the next one and use subprograms.

To be available, the toolpath must be:

  • 2 ways direction

  • with adjusted pass.

Strategy Parameters


Movement Parameters

Dialog Area

Parameters

Safety (in Z)

Rapid plane altitude

Safety distance

Approach and return in Z

Approach altitude

Retract altitude

Return altitude



Z Plunge

Plunge

Mini helix rad.

Mini ramping rad.

Mini rad mach area

Plunge angle



Management of rapids

Motions

Fmax safety distance

Rapid/Fmax %


Safety (in XY)

XY safety distance



Technology Parameters

Dialog Area

Parameters




Cutting Conditions

Quality

Cutting Speed

Feedrate/tooth

Spindle direction

Level

Spindle speed

Feedrate

Plunge feedrate

Rapid feedrate

Sp. speed range

Coolant number

Specific coolant

Tool Numbering

Tool number

Specific Number

Length compensation number

Diameter compens. Nb

Users Fields

Comment

Control Device

Milling Set




Options Parameters
