Cavity

Cycle: Z repeat Facing, Facing Pocket

▶️ Watch a video at the bottom of page: click here

The management of cavity enables two situations:

  • the facing toolpath is calculated so that it avoids the cavity,

  • the facing generates rapid motions through the cavity (Fmax).

To make it possible:

  • the cavity must be selected as an island,

  • the altitude of island must be defined lower than the cavity bottom altitude!

On the example, Z-20 is lower than Z0.

Avoid mode:

Feed Through:

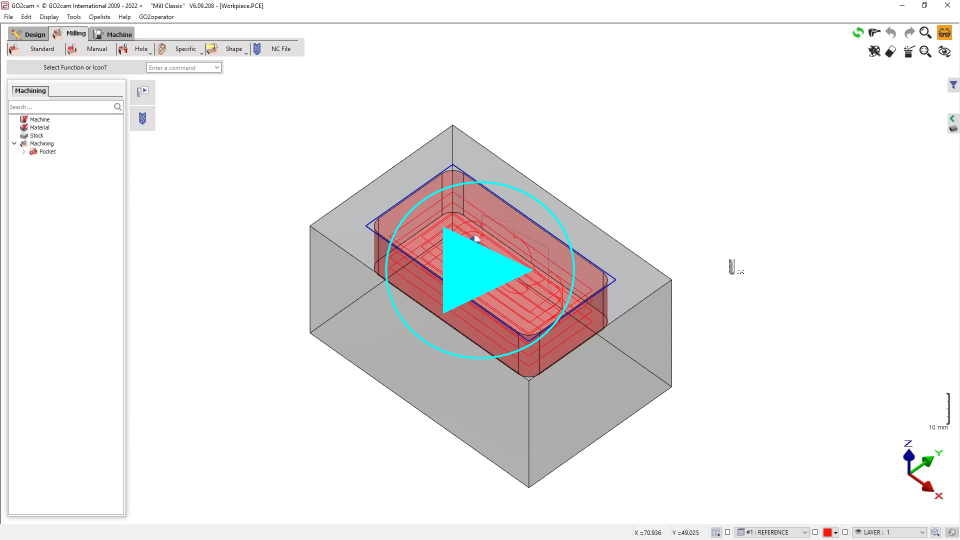

▶️ Watch a video about the parameter Cavity.
