Deep Drilling Mode

Cycle: Deep Drill, Clevis

▶️ Watch a video at the bottom of page: Click here

Definition

The several parameters all dedicated to the deep drilling mode are explained below.

Principle

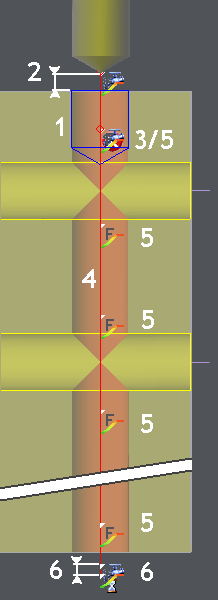

The deep drilling follows a very precise process:

1. Pre piercing:

A pre piercing operation must be programmed in the hole before the deep drilling. The depth of this drilling can be around 1.5 x diameter. For diameter 10 mm, a depth of 15 mm is necessary.

2. Tool approach:

The spindle speed is reduced, then the spindle is stopped at Safety Distance before going inside the hole.

3. Tool engagement:

The tool is engaged in the pre pierced hole, a stop is set for control operation.

4. Machining:

The spindle is in normal speed all along the machining.

5. Feedrate reduction:

The feedrate is reduced at each intersection with another hole. The feedrate can also be reduced at the start of machining, to ensure the good guiding of the drill.

If the hole is a through hole, the feedrate can also be reduced before going through.

The other holes have to be machined first if the intersection is to be recognized.

6. Retract:

A retract and a dwell are defined in the bottom of the hole. After this, the tool is retracted in reduced spindle speed.

Description of the parameters

Coolant postponed

If set to yes, the coolant is done at the bottom of the pre pierced hole.

Spindle speed reduced

Fill the value of spindle speed that you want to program for approach and retract of the drill. The value is expressed in revolution/minute.

Feedrate Reduction Coef

This value is a coefficient relative to the feedrate defined in the Technology.

Starting Distance in reduced feed

If a reduced spindle speed is needed in the beginning of the hole, define the distance on this field. After this distance, the spindle speed is changed to the normal value. It is defined in the page Technology.

Distance before intersection (A):

This distance represents the moment when the feedrate is modified to reduced value before an intersection with another hole.

Distance after intersection (B):

This distance is the moment when the feedrate value is modified to the standard value.

Distance before going through (C):

For through material holes, it is possible to reduce the feedrate before going through material.

▶️ Watch videos explaining how to use Gundrilling in GO2cam.

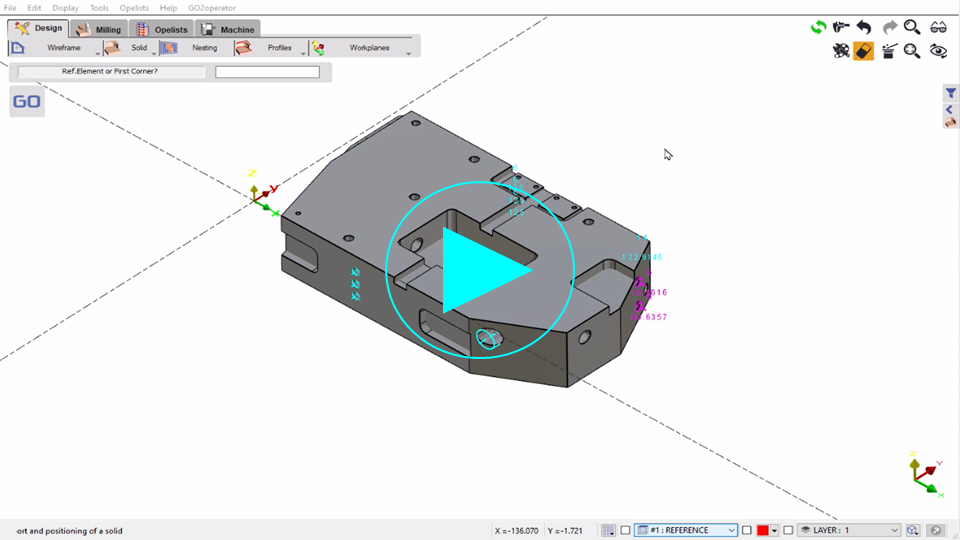

Video shows how to add a gundrilling operation to a hole.

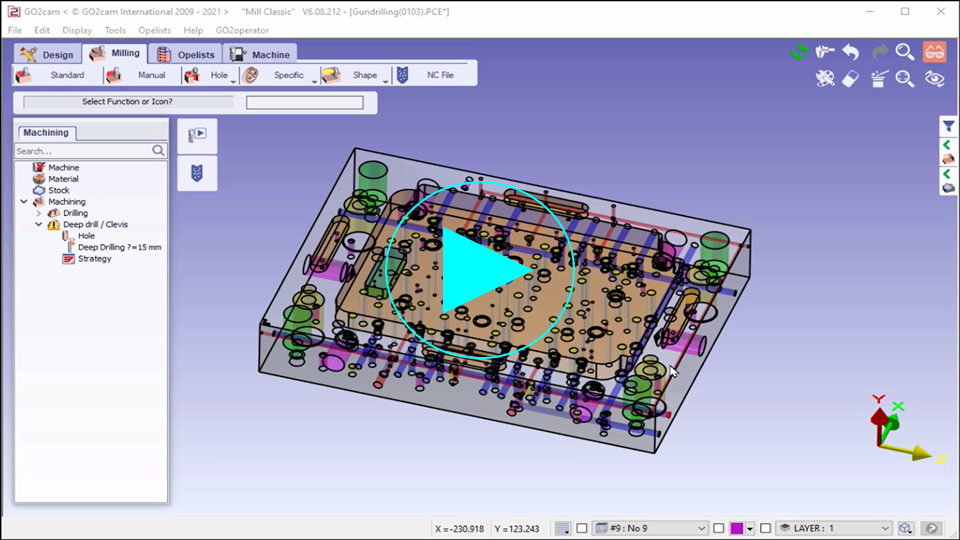

Video shows the first part on how to tackle common mistakes when applying a gundrilling operation notably using correct diameter of tools.

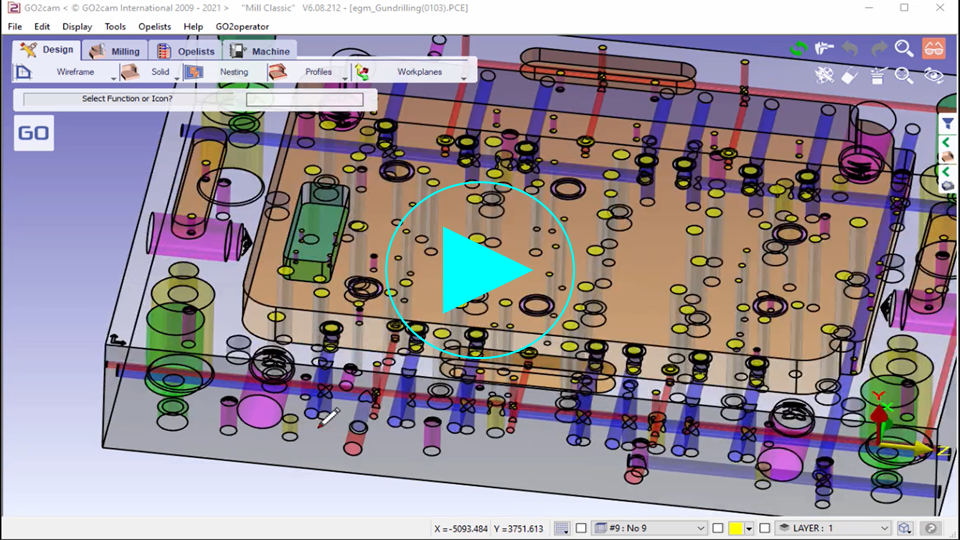

Video shows the second part of common mistakes and shows how to unify holes that are within the same axis.
