2 Ways Path
Cycle: Contouring

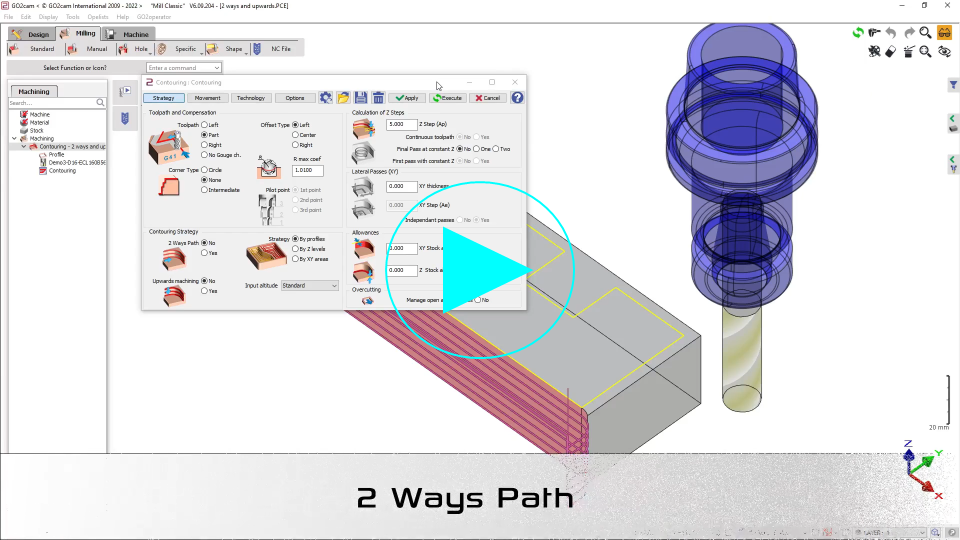

▶️ Watch a video at the bottom of page: Click here |
Definition
It consists of inverting the pass direction in XY or Z to create a bidirectional path.
A toolpath can also be defined with alternating compensation, using G41 and G42 successively.

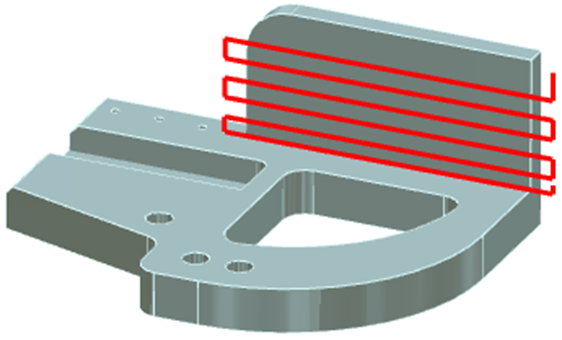

![]() | No |
![]() | Yes |
Z Step (Ap) should be greater than zero, else this option is not available.
![]() The main advantage is to avoid many rapid motions |
▶️ Watch the video based on parameters 2 Ways Path and Upwards Machining. ![]() |
