Cutting

Cutting Icon

Key Points

Machining of the internal areas of recognized parts involves cutting or removing material from within the defined boundaries of a component.

This operation ensures precise shaping and dimensional accuracy of cavities, pockets, or recesses identified during part recognition.

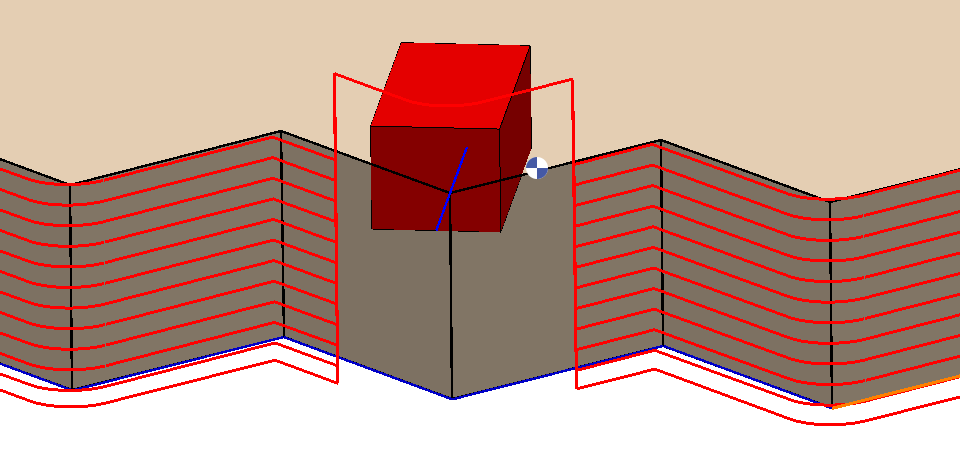

Screenshot 2025-10-27 132504.png

Strategy Parameters

Dialog Area	Parameters
Toolpath Strategy	Machining Direction
Toolpath and Compensation	Cutting of inside areas	Corner type
Compute Z steps	Continuous toolpath	Final Pass at constant Z
Compute Z steps	Z Step (Ap)
Allowances	XY Stock allowance	Z Stock allowance

Movement Parameters

Dialog Area	Parameters
Safety (in Z)	Rapid plane alt.	Safety distance
Approach and return in Z	Approach altitude	Retract altitude
Approach and return in Z	Return altitude

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Feedrate/tooth	Spindle direction
	Level	Spindle speed
	Feedrate	Plunge feedrate
	Rapid feedrate	Sp. speed range
	Coolant number	Specific coolant
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compensation number	Diameter compens. Nb
Users Fields	Comment	Control Device
Users Fields	Milling Set

Options Parameters

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Curves Computing	Curve tolerance	Curve segmentation
