Part-Stock Comparison

Presentation

Comparison between the finished profile to machine and the stock machined at a time.

This function is only available in Turning technology.

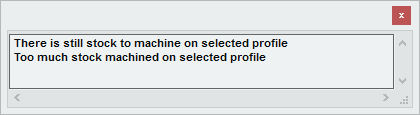

GO2cam informs you about the stock left to machine and displays it in blue. It also shows you the areas that should not have been machined in red.

To make a comparison, click on the profile corresponding to the finished part.

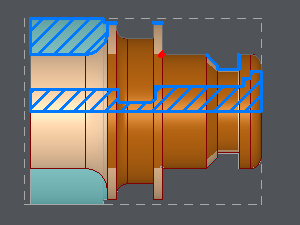

Note : in the following example, the blue zones are the areas to machine and the red one should not have been machined.

In reality, this is a pecking considered by GO2cam as incorrect since the pecking geometry was not constructed.
