Finish

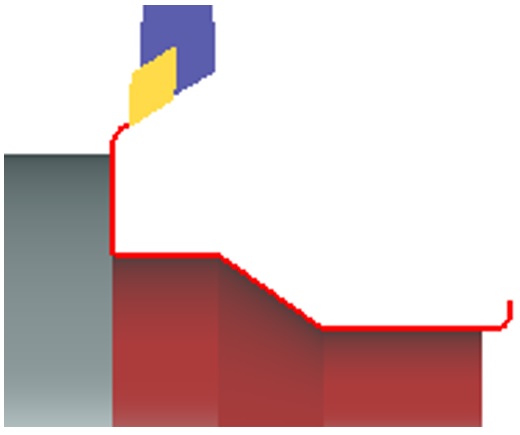

One pass to finish the part after straight cutting, facing or boring operation.

Key Points

This cycles generates one only toolpath, whatever is the rest of material that you have to machined.

Many strategies of leadin/leadout are offered. Here, the stock is managed to optimize approach and retract motions.

Automatic generation of techno functions during cycle execution for feedrate adjustments.

Simplification of programming by allowing a single toolpath to cover an entire shape with multiple feedrate changes.

Does not work if some local stock allowances are defined on the profile.

Dialog Area	Parameters
Approach and Return Characteristics	Lead out overlength	Lead in overlength
	Lead out linear overlength	Lead in linear overlength
	Return distance
	Return angle	Lead in arc radius
	Leadout overlength/Vector	Aperture lead in radius
	Lead out arc radius	Leadin overlength/Vector
	Aperture lead out radius	Approach distance
	Limitate the leadin/leadout	Approach angle
	Return safety distance	Approach safety distance

Dialog Area	Parameters
Management of collisions	Gouge Check on stock	Offset XY
	Safety area	Offset Z
	Safety distance in Z for rapids	Safety distance in X for rapids
Curves Computing	Curve Tolerance	Curve explode into
Options	Front angle clearance	Back angle clearance
Options	Compensation achievement factor	Coeff of feedrate reduction
Options on the toolpath	Break the outside corners	Maxi angle
