Standard Workshop Documents

This command enables to edit one or several predefined documents:

• in the Excel File Format (*.xls), with editable pages,

• in the 3D PDF File Format, which enables to move dynamically part and tools.

We offer 11 standard templates: list of operations, cycle’s sheet, tools sheet, diagram of times etc. 3 of these templates are only dedicated to EDM technology. Choose the one you need to create a specific manufacturing folder for each part.

You can also create your own layout documents.

Templates

Description

Milling

Turning

EDM

Main Page

Main Page of the Production File

Part Info

All the data regarding the PCE file

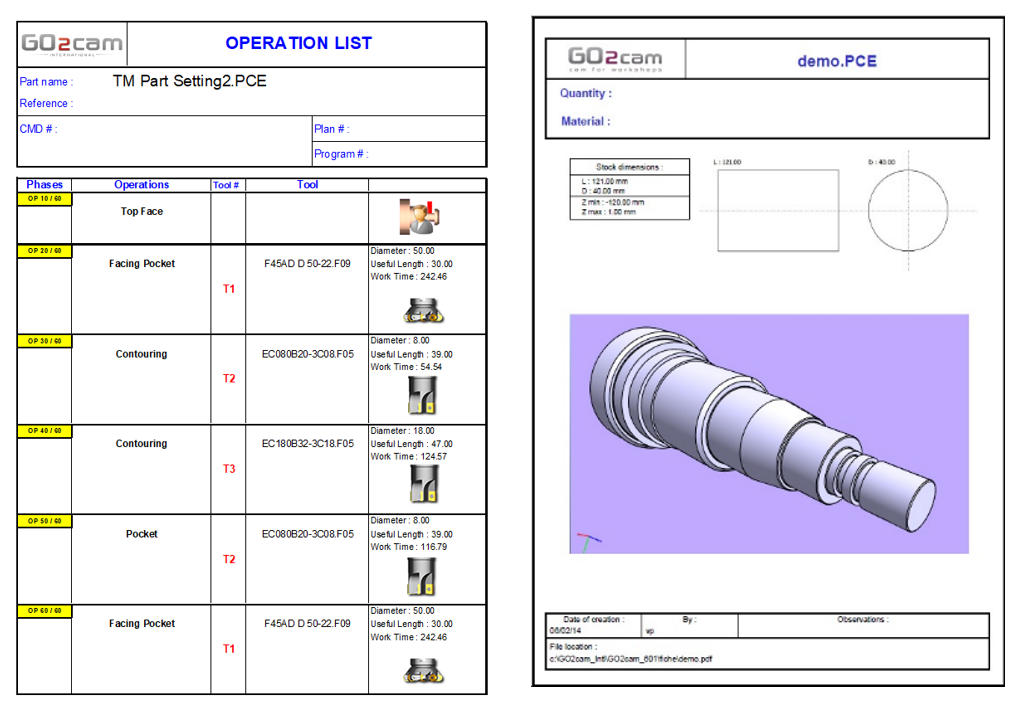

Operation List

List of the machining operations applied on the part

Cycles

Tool and Process sheet for each cycle

Tooling

Tool sheet with all the useful parameters

Tools Magazine

Position of the tools in the machine

Machining Diagrams

Time and Production Diagrams

List of the Holes

Number of holes, names of the models used, positions and many other technical information

Techno Page

List of the passes with the offset values and the types of path (reverse, partial etc.)

Part and Drilling Labels

Names of labels defined in the part and screenshot of labels on the holes

Drilling Table

Table with threading points coordinates ready to be drilled

Profile Label

Screenshot with labels defined on the profiles

3D symbols are now exported to Workshop Documents.

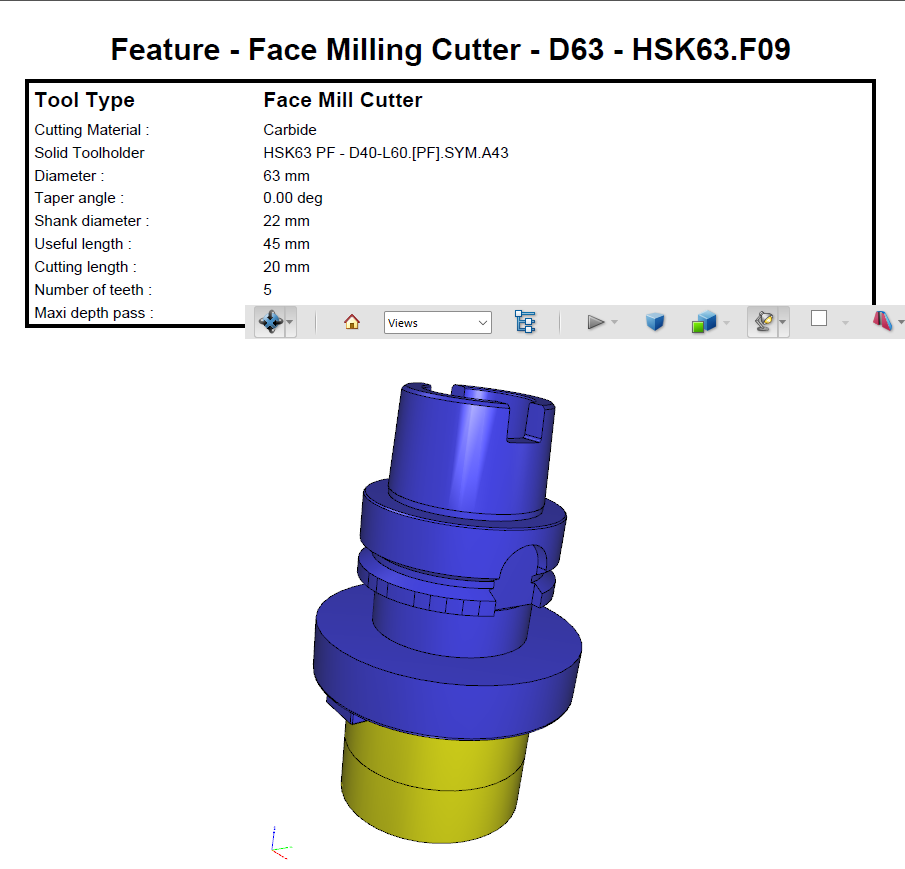

For instance, solid toolholders can now be seen in images displayed both in Standard Workshop Doc and UWD.
