Creation of Median Curve for 5 axis machining

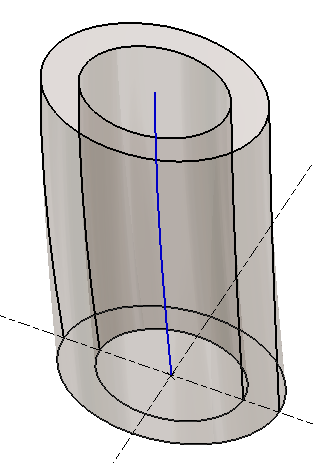

The Median Curve command draws a curve which is median to 2 entities or profiles.

This is useful to define Reference and Drive profile for 5 axis machining.

To draw a median curve:

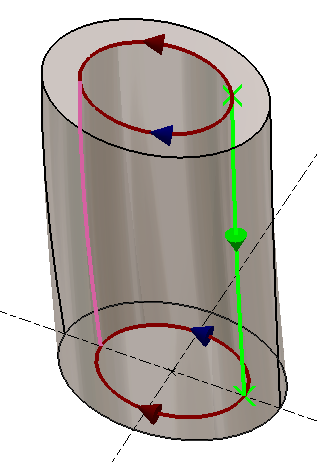

  1. Select the two profiles

  1. Click on the Validate to confirm.

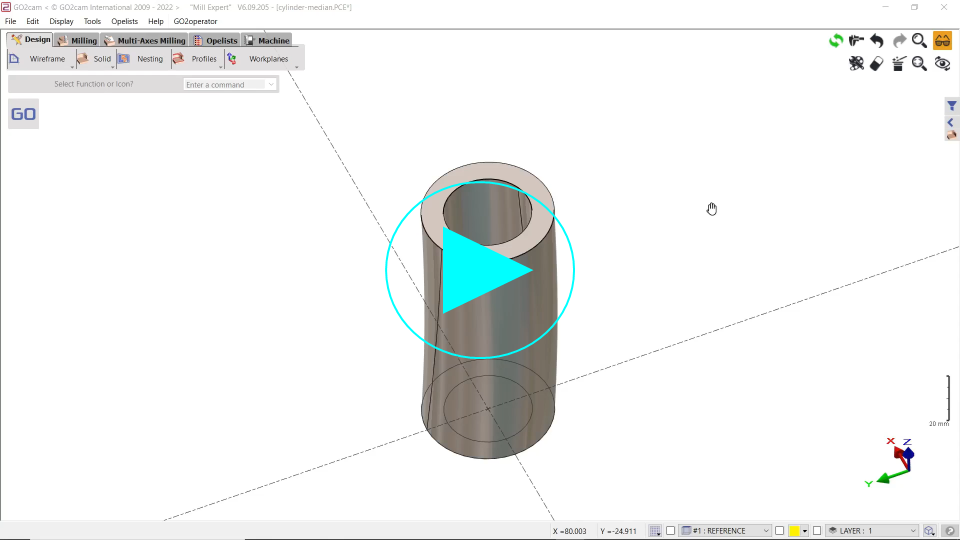

You can watch a video on how to create a median curve on a solid:

Creation of median curve.png
