Inversion of Profiles - Milling
The profile selection process is an important step in the programming stage. It determines the region to apply a machining process, the direction of machining, the depth and subsequently, the types of toolpaths to use, etc.
Changing the direction of machining is sometimes desired and there are 3 easy methods in GO2cam to do that:
During profile selection - you can directly invert the currently selected profile by clicking on the icon in the selection popup dialog. |  | |

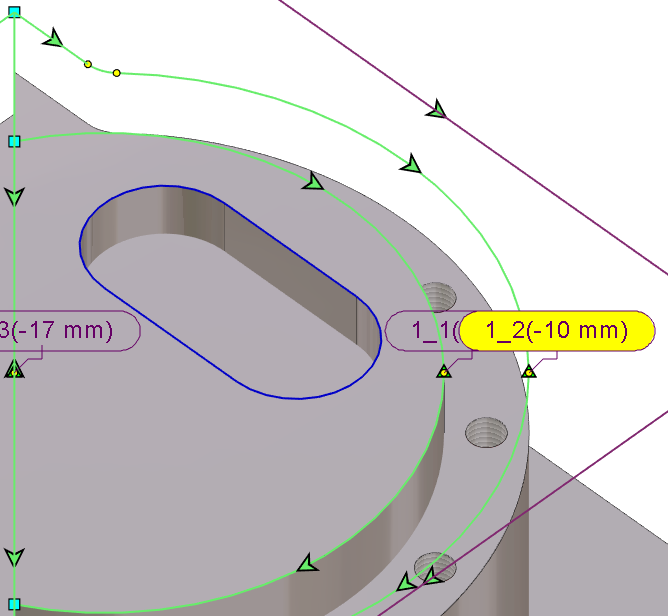

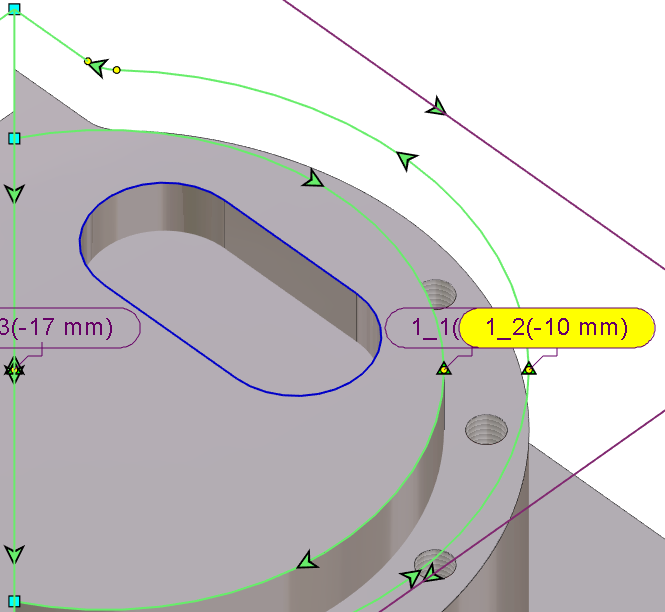

After validation of profiles - you can click on the information arrow  and then individually click the profile itself or the profile label to invert it. |  Before |  After |

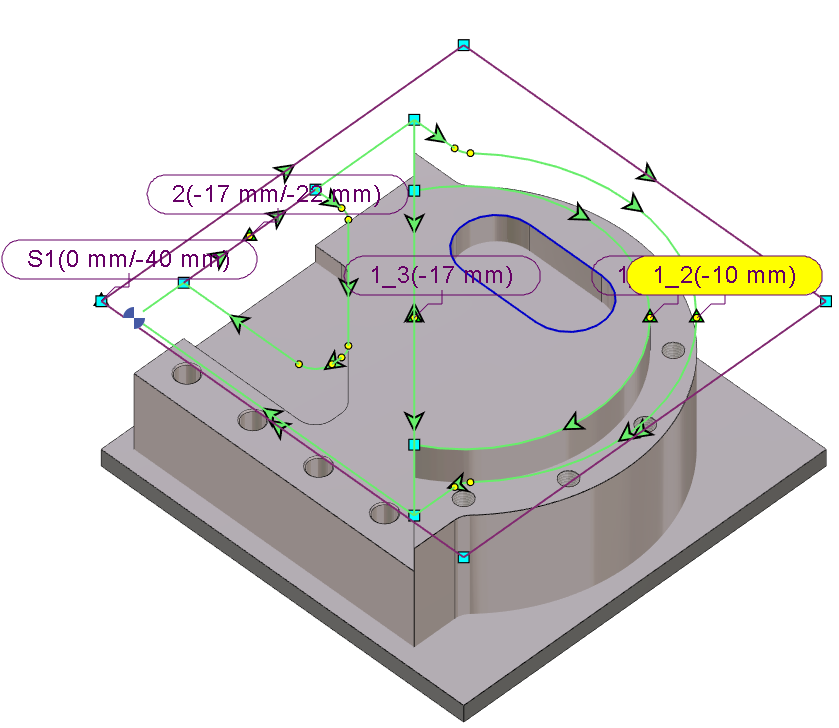

After validation of profiles - you can click on the information arrow and then right-click in the background and select Invert All on the pop-up.  This will invert the direction of all the current defined profiles without having to individually choose each one of them. |  Before |  After |
