Straight Cut

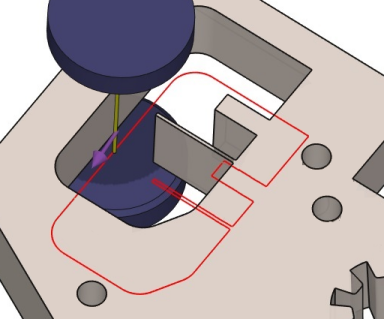

Operation of cylinder cutting.

Key Points

This cycle offers many technical options:

management of different types of modes (Manual, Auto with correction, Auto without correction),
ability to add filleted corners internally or externally.
Shifted path: Deletion of micro radius of the profile according to the offset.

straight cut.png

Strategy Parameters

Dialog Area	Parameters
Toolpath	Mode	Shifted Path
	Offset type	Stock allowance
	Part position	Stop number
	Stop length
Corners	Interior corner	Exterior corner

Movement Parameters

Dialog Area	Parameters
Approach / Return	Macro
	Lead in angle	Lead out angle
	Lead in distance	Lead out distance
Lead in and Lead out	Lead in overlength	Lead out overlength
	Lead in arc radius	Lead out arc radius
	Type of lead in radius	Type of lead out radius
	Overlength	Overlength on lead out radius
	Overlength on lead in radius	Threading on retract distance

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Feed rate	Number of angle register
	Coolant number	Offset number
	Setting number	Offset
		Quality
User Fields	Machine quality	Comment
User Fields	Control Device	Machining Set

Options Parameters

Dialog Area	Parameters
Options	Heigh of plane	Thickness
	Upper guide height	Cutting thickness
	Lower guide height	Material height
Curves Computing	Curve Tolerance	Explode curve in
