Facing Pocket

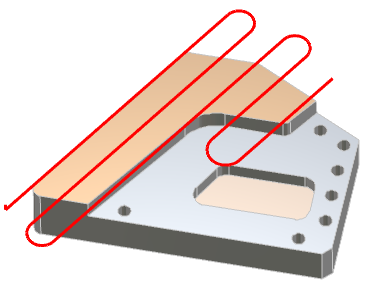

Sweeping toolpath applied on faces and pockets. The profile must be closed profile, it can also be the stock directly.

Key Points

GO2cam automatically determines which is the best sweeping angle according to the selected face of solid.
with Rotating Machining: the toolpath is optimized by giving a rotary toolpath which reduces the rapid retracts, with still the respect of machining direction.
Pockets avoidance: either the facing toolpath is calculated so that it avoids the pocket, or it goes through the pocket with Fmax value.

New behaviour of the option Z repeat, that enables to repeat exactly the same toolpath from a Z step to the next one and use subprograms.

To be available, the toolpath must be:

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Toolpath Optimization	Rework Zone Tolerance	Treat maxi stepover
	Feedrate reduction coef	Maxi stepover coef
	Z repeat
Curves Computing	Curve tolerance	Curve segmentation
Top, Bottom and Sides	Top: Radius/Height	Top: Chamfer angle
	Side: Taper	Scallop value
	Bottom: Radius/Height	Bottom: Chamfer angle
	Reading on solid
