Cycles: millyuGO Pocket, Pocket, Facing Pocket.
|
You can customize the amount of overcutting applied to open regions by entering any desired value. |
Open areas
|
|

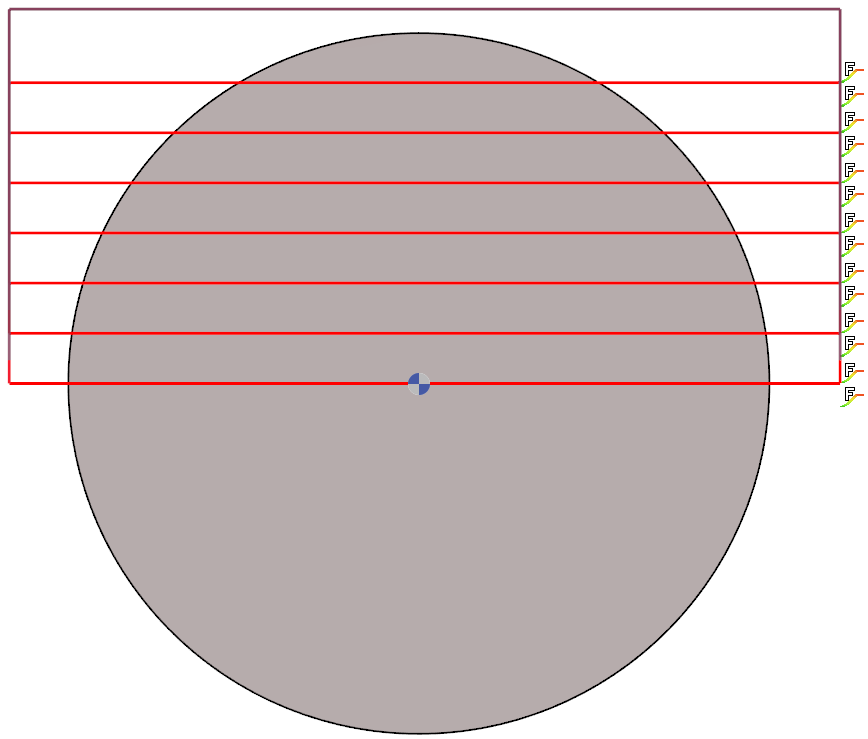

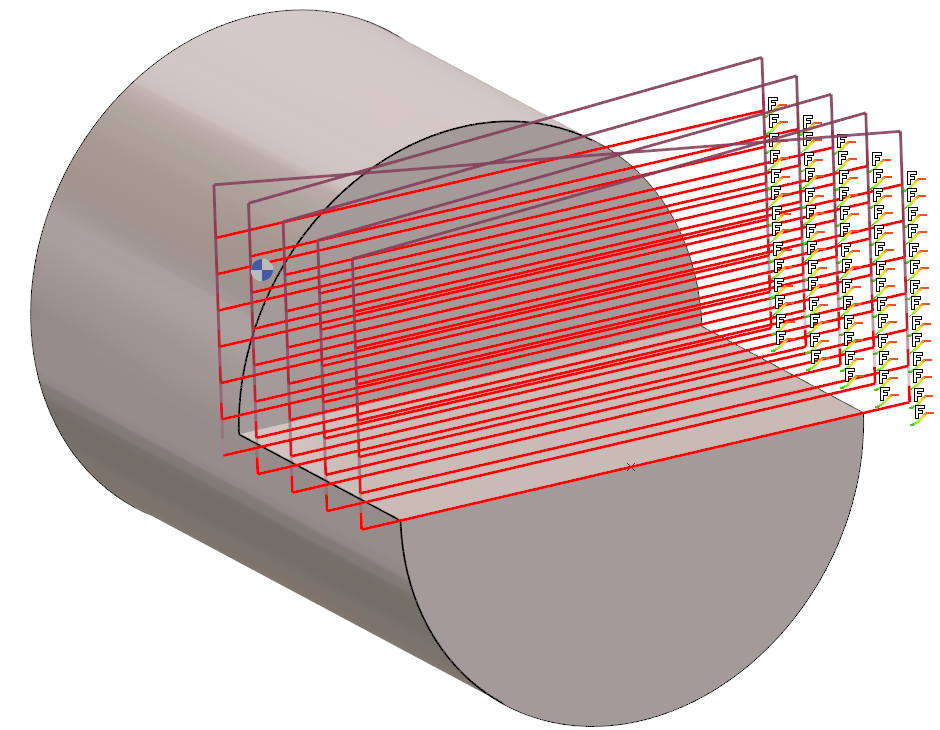

On profile |
The tool will machine beyond the selected profile by a small amount determined by the "overcutting length" setting. |
|
|
|
|

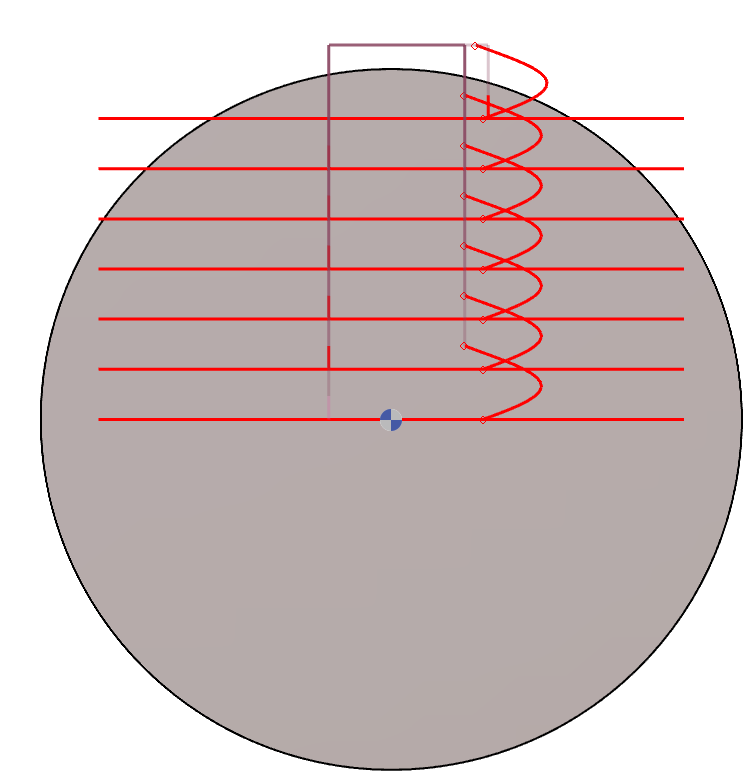

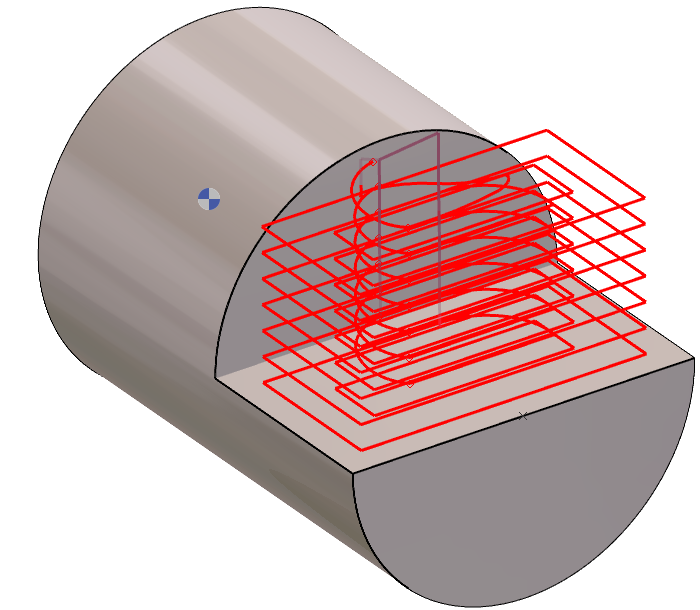

With no overcut |
The tool will machine exactly within the selected profile. |
|
|
|
|

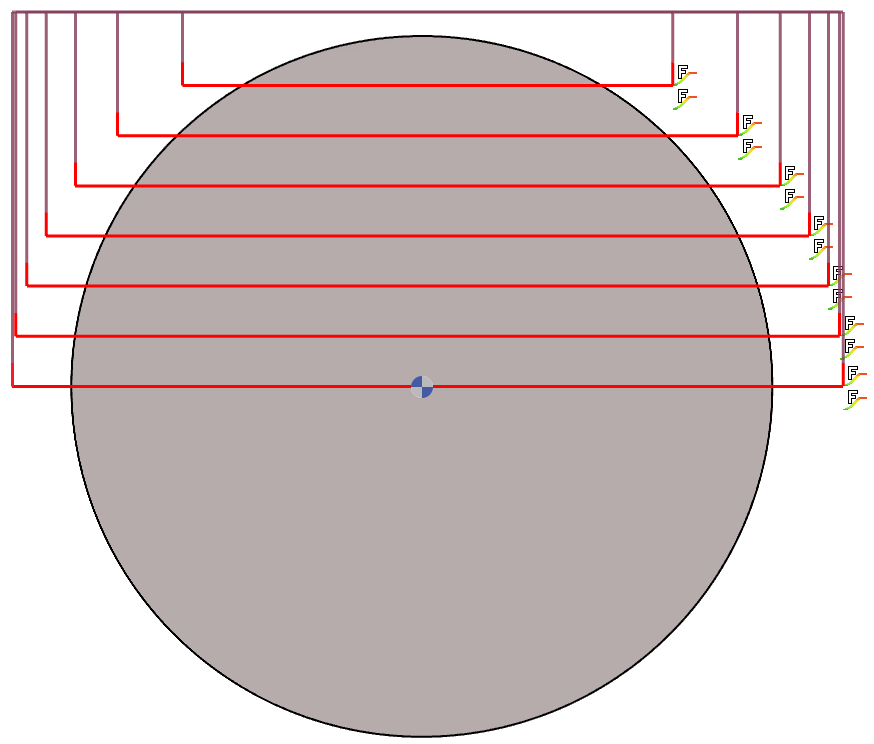

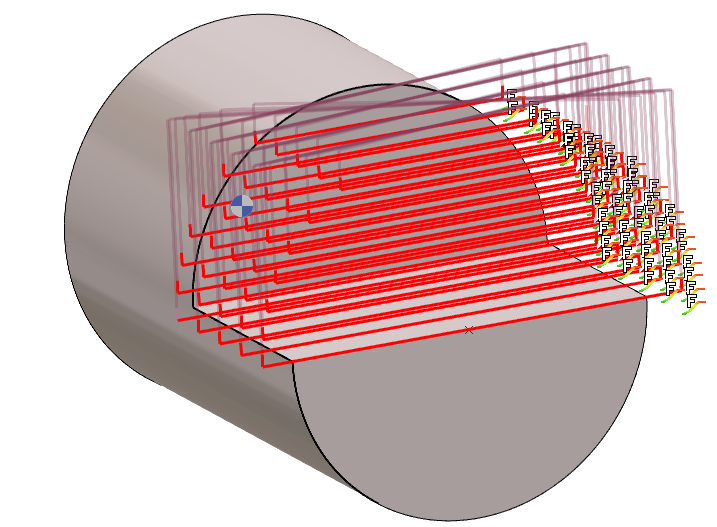

On 3D stock |
The tool will follow the contours of the 3D stock, limiting machining in areas where there's no material. |
|
|
|
|
||||
