5X Isoparametric

Isoparametric is a finishing operation respecting the natural orientation of the face: the U and V isoparametric curves. This cycle is included in the optional module 4-5 axis.

Key Points

Easy selection by only a single click on a solid face.
Ability to define isoparametric strategies such as Chaining Coefficient, Zig Zag path, HSM machining.
Ability to define allowances in XYZ, Normal to stock.
Ability to define Longitudinal and Transversal tilting angles.
3D correction for toolpath.
Defined with motions following 5 simultaneous axes.

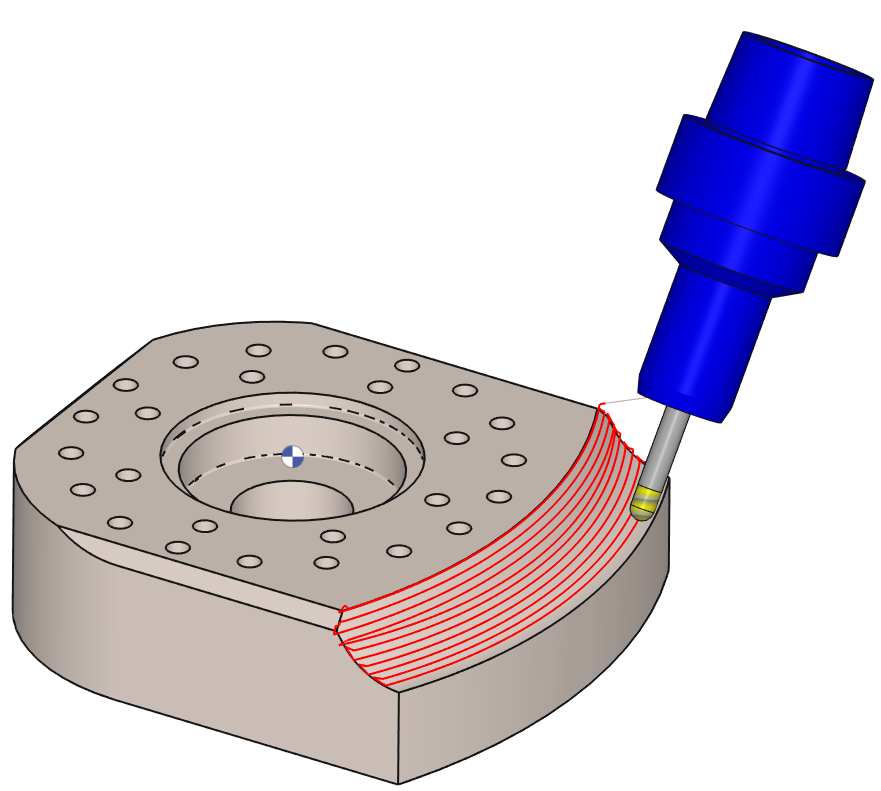

5X Isoparametric Image.PNG

Strategy Parameters

Dialog Area	Parameters
Isoparametric Strategy	Chaining coefficient	Zig Zag path
Isoparametric Strategy	HSM machining	HSM radius
Stepover Calculation	Stepover (Tool ratio)	Stepover value (Ae)
Allowances	XY Stock allowance	Normal stock allowance
Allowances	Z Stock allowance
5 Axes Machining	Longitudinal tilting	Transversal tilting angle
Toolpath and Compensation	3D Correction

Movement Parameters

Dialog Area	Parameters
Safety (in Z)	Rapid plane altitude	Safety distance
XY Approach and Retract	Lead in length	Lead out length
XY Approach and Retract	Lead in strategy Normal/Tangent/Z Axis/Vector	Lead out strategy Normal/Tangent/Z Axis/Vector

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Feedrate/tooth	Spindle direction
	Level	Spindle speed
	Feedrate	Plunge feed
	Sp. speed range	Specific coolant
	Coolant number
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compensation number	Diameter compens. Nb
Users Fields	Comment	Control Device
Users Fields	Milling Set

Options Parameters

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Curves Computing	Curve tolerance	Curve segmentation
