Jig Boring

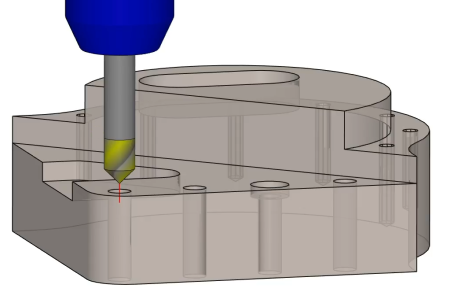

Operation of jig boring, realized with spotting drill, centering drill, standard drill or chamfer mill cutter.

Key Points

Altitude and Depth: In GO2cam, we can manage the stock by taking into account the stock left to calculate the machining toolpath of holes.
Depth Calculation: Tool end or Diameter.

Jig boring3.png

Strategy Parameters

Dialog Area	Parameters
Altitudes and Depths	Altitude/Reference	Depth/Reference
	Depth	Depth calculation
	Diameter centering	Retract
	Z offset
Extra options	Special No	Final dwell

Movement Parameters

Dialog Area	Parameters
Safety (in Z)	Rapid plane alt.	Safety distance
Approach and return in Z	Approach altitude	Retract altitude
Approach and return in Z	Return altitude

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Feedrate/tooth	Spindle direction
	Level	Spindle speed
	Feedrate	Sp. speed range
	Coolant number	Specific coolant
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compensation number
Users Fields	Comment	Control Device
Users Fields	Milling Set

Options Parameters

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Users Fields	Macro
