Z repeat Pocket

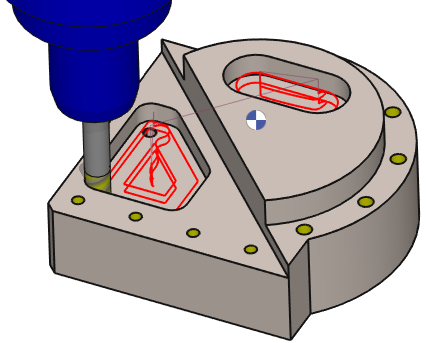

This cycle is used to program closed pockets that can be machined with a repeat of Z passes.

• The generation of subprograms is possible with this cycle. The toolpaths generated are strictly the same for each Z step. The pocket has to be closed with no island or subpocket.

• You can also generate canned cycles codes for circles, oblongs etc.

• Consequently, in case of islands and/or subpockets, it is advised to choose the Pocket cycle.

Dialog Area

Parameters

Toolpath Strategy

Rework machining

Stock left in roughing

Reference diameter

Calculation of Z steps

Z Step (Ap)

Constant Z Step

Stepover Calculation

Stepover (Tool ratio)

Stepover value (Ae)

Allowances

XY Stock allowance

Z Stock allowance

Dialog Area

Parameters

Safety (in Z)

Rapid plane altitude

Safety distance

Approach and return in Z

Approach altitude

Retract altitude

Return altitude

Macro

Macro

Dialog Area

Parameters

Cutting Conditions

Quality

Cutting Speed

Feedrate/tooth

Spindle direction

Level

Spindle speed

Feedrate

Plunge feed

Sp. speed range

Coolant number

Specific coolant

Tool Numbering

Tool number

Specific Number

Length compensation number

Diameter compens. Nb

Users Fields

Comment

Control Device

Milling Set

Dialog Area

Parameters

Behaviour on the clamps and components

Gouge Check

Offset XY

Safety area

Offset Z

Curves Computing

Curve tolerance

Curve segmentation

Top, Bottom and Sides

Top: Radius/Height

Top: Chamfer angle

Side: Taper

Scallop value

Bottom: Radius/Height

Bottom: Chamfer angle

Reading on solid
