Roughing Reworking

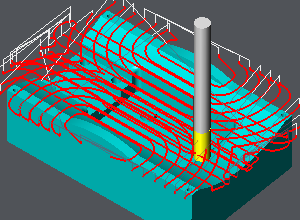

The roughing consists in getting off the maximum of material to be the closest possible to the final shape before finishing stage. GO2cam applies automatically on a solid a pocket cycle with Z successive increments and remaining material management.

The roughing/reworking cycle does not enable a constant stock allowance on the whole part. It has to be completed by a semi-finishing cycle by Z increment or by sweeping if you want a constant material cutting in finishing stage.
To get closer to this result, we can decrease the increment value. This solution is good only if the machine is able to support high feedrates (HSM). For more conventional machines, we will prefer a list of operations starting with great diameter miling cutters to rough the part, and progressively come to the diameter close to the necessary value to get the final part.
When the rest material is minimum, it will be better to program a Z level finishing cycle than a roughing/reworking to save much calculation time.

Dialog Area	Parameters
Toolpath Strategy	Machining Direction	Machining Method
Toolpath Strategy	Optimization
Limitation of Machining	Limitation Area	Mini machining area
Undercut and Reworking	Undercut machining	Island reworking
Undercut and Reworking	Scallop reworking	Scallop value
Stock Calculation	Stock	Reference tool diameter
Stock Calculation	Tool torus radius
Stepover Calculation	Stepover (Tool ratio)	Stepover value (Ae)
Stepover Calculation	XY Scallop	Respect of scallop
Z Step	Z Step (Ap)
Allowances	XY Stock allowance	Z Stock allowance
List of altitudes	List of altitudes

Dialog Area	Parameters
Safety	Rapid plane altitude	Safety distance
Approach and return in Z	Approach altitude	Retract altitude
Approach and return in Z	Return altitude
Z Plunge	Plunge	Mini helix rad.
	Mini ramping rad.	Mini rad mach area
	Plunge angle
Management of rapids	Motions: Rapid, G1 Fmax, G0/G1 Fmax	Fmax safety distance
Management of rapids	Rapid/Fmax %
Safety (in XY)	XY safety distance	SD/ Tool shank
Safety (in XY)	Management of toolholder

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Feedrate/tooth	Spindle direction
	Level	Spindle speed
	Feedrate	Plunge feed
	Sp. speed range	Coolant number
	Specific coolant
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compensation number	Diameter compens. Nb
Users Fields	Comment	Control Device
Users Fields	Milling Set

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Toolpath Optimization	Rework Area Tolerance	Treat maxi stepover
	Feedrate reduction coef	Maxi stepover coef
	Type of HSM radius	Radius of HSM loop
	Radii on contour
Curves Computing	Curve tolerance	Curve segmentation
Toolpath Computing	Decomposition of arcs of toolpath	Arcs decomposition tolerance
Cooling	Loop radius	Distance between loops

Key Points

Strategy Parameters

Movement Parameters

Technology Parameters

Options Parameters
