Contour Rework

This cycle is define after a contouring cycle and is aimed at reworking automatically areas where the previous tool could not go.

Key Points

The tool passes only in areas with residual material.
Ability to define an auto finish cycle just after the rework.
Need to define the diameter of the tool and the stock left for the roughing cycle.

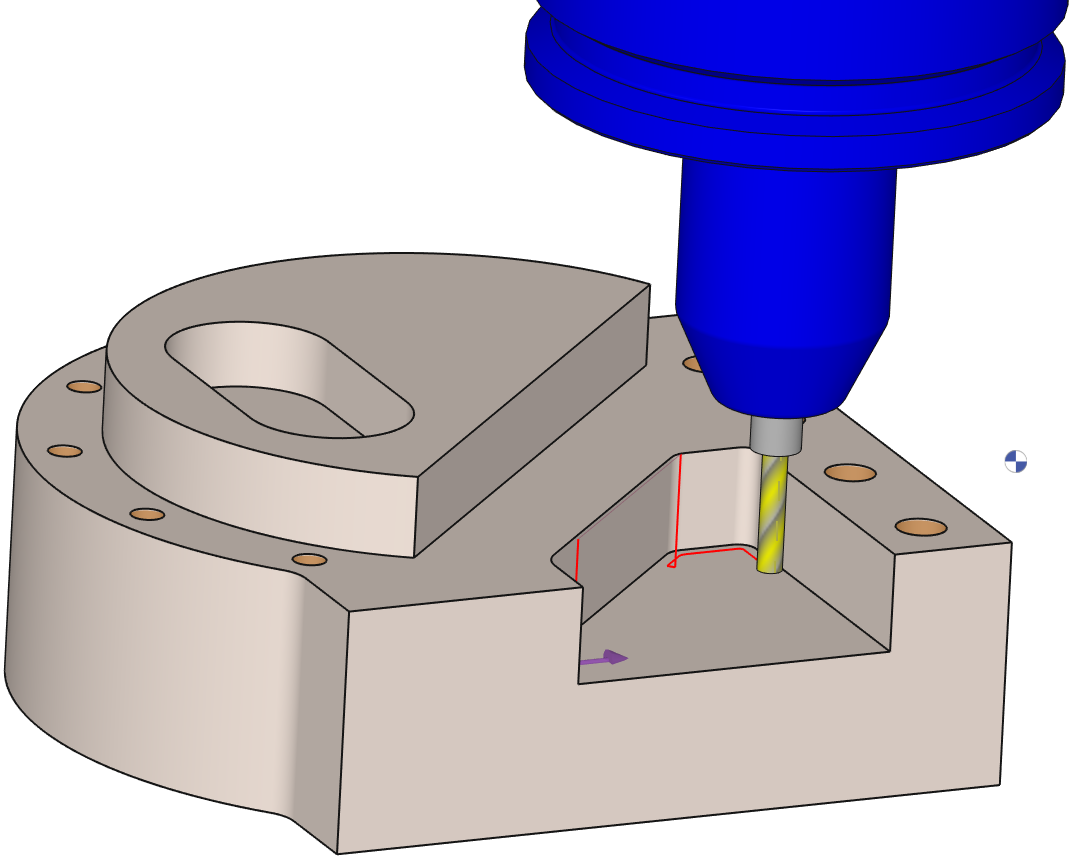

Contour Rework Image.PNG

Strategy Parameters

Dialog Area	Parameters
Toolpath and Compensation	Toolpath	Offset Type
	Corner Type	R max coef
	Auto finish
Tool and Stock Allowance in Contouring	Stock left in roughing	Reference diameter
Calculation of Z steps	Z Step (Ap)
Allowances	XY Stock allowance	Z Stock allowance
Overcutting	Manage open areas

Movement Parameters

Dialog Area	Parameters
Safety (in Z)	Rapid plane alt.	Safety distance
Approach and return in Z	Approach altitude	Retract altitude
Approach and return in Z	Return altitude
Motions between Z approach and XY leadin	Lead in/lead out mode
Leadin and Leadout in XY	Lead in angle	Lead out angle
	Lead in length	Lead out length
	Angle/distance calculation+tool radius	Radius calculation+tool radius
	Lead in arc radius	Lead out arc radius
	Leadin radius angle	Leadout radius angle
	Start overlength	Final overlength
	Z plunge distance on bottom radius

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Feedrate/tooth	Spindle direction
	Level	Spindle speed
	Feedrate	Plunge feed
	Sp. speed range	Specific coolant
	Coolant number
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compensation number	Diameter compens. Nb
Users Fields	Comment	Control Device
Users Fields	Milling Set

Options Parameters

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Curves Computing	Curve tolerance	Curve segmentation
