Back Machining

Back machining of holes, counter boring, chamfering, reaming with 2 types of tools, the indexable bar and the retractable cutter.

Key Points

Indexable insert bar: this tool need an indexable stop, the code is often M19

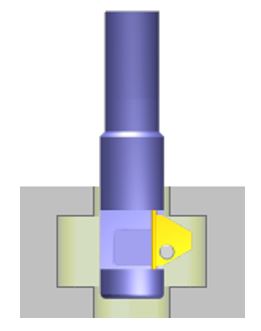

Retractable insert bar: the insert goes outside of its seat when the spindle rotation is inverted (M03/M04). Choose Inverted Rotation
Machining of the top before the plunge.

Retractable insert bar-20230627-075735.jpg

Strategy Parameters

Dialog Area	Parameters
Altitudes and Depths	Machining of the top before the plunge	Final dwell
	Altitude/Reference	Back altitude/Ref
	Depth/Reference	Back depth/Ref
Safety	Back safety distance	Retract at end of mach.
Type of Tool	Plunge mode	Index Angle
Type of Tool	Excentration distance

Movement Parameters

Dialog Area	Parameters
Safety (in Z)	Rapid plane alt.	Safety distance
Approach and return in Z	Approach altitude	Retract altitude
Approach and return in Z	Return altitude

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Feedrate/tooth	Spindle direction
	Level	Spindle speed
	Feedrate	Plunge feed
	Sp. speed range	Specific coolant
	Coolant number
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compensation number	2nd length comp. number
Users Fields	Comment	Control Device
Users Fields	Milling Set

Options Parameters

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
