Plunge Mode

Cycle: Back Machining

Definition

This option is defined according to the chosen tool. If the tool is chosen first, the correct option is automatically chosen in the strategy page!

Type of Tool.png

 2 different types of tools can realize the back machining operation:

The Indexable insert bar:

Choose Indexable Stop

  • this tool needs an indexable stop, the code is often M19.

The retractable insert bar:

Choose Inverted Rotation

  • the insert goes out of its seat when changing the spindle rotation.

The retractable insert bar:

Choose Stop for tooling

  1. The hole must be drilled​

  2. The tool plunges into the hole. A stop is done.  The insert is mounted.​

  3. Back Machining​

  4. The tool goes down again. The insert is removed​

  5. The tool is retracted.​

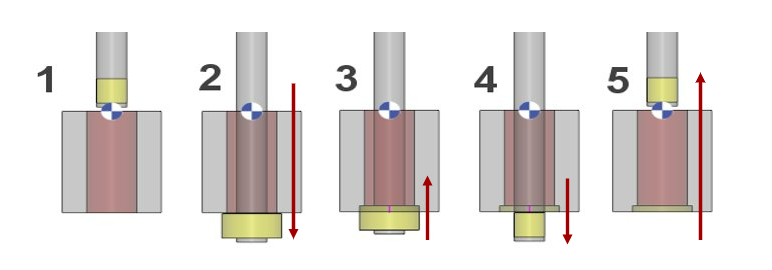

Stop for tooling.png
