Cycles: Threading, Pocket+contour, Finish Reworking, Finish Contour
Definition
Definition of the toolpath according to the part.
Three options are available:
|
Part: toolpath has no offset, it is calculated on the part. Radius compensation is taken into account (G41). Leadin and leadout radii and Leadin and leadout distances are automatically created. |
|
Tool with Offset: GO2cam generates an offset toolpath to the left of the profile with tool radius compensation (G41). |
|
Tool with no Offset: GO2cam generates an offset toolpath to the left of the profile with no tool radius compensation. |

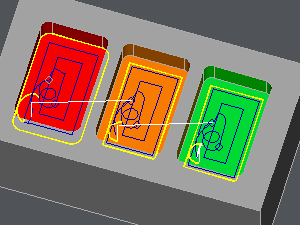

Options are shown on the example from left to right.
