Z repeat Facing

Machining of complete faces defined by their contour profile. This profile must be closed. The toolpath of this cycle can easily by repeated in Z, the generation of subprograms is possible.

Key Points

In case of islands and/or subpockets, it is advised to choose the Pocket cycle.
Sweep Type parameter enables 1-way or 2-ways machining and arc at each change of direction.

Pockets are automatically either avoided or done in a feedrate speed (G01 Fmax)

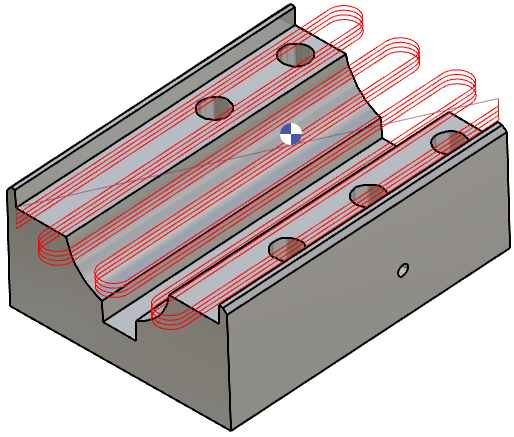

Z repeat Facing.png

Strategy Parameters

Dialog Area	Parameters
Toolpath Strategy	Sweep type	Cavity
Calculation of Z steps	Z Step (Ap)	Constant Z Step
Facing Strategy	Lace angle	Overlength
	Contouring order	Contouring type
	XY Stock for finish
Stepover Calculation	Stepover (Tool ratio)	Stepover value (Ae)
Allowances	XY Stock allowance	Z Stock allowance
Overcutting	Overcutting	Open area

Movement Parameters

Dialog Area	Parameters
Safety (in Z)	Rapid plane altitude	Safety distance
Approach and return in Z	Approach altitude	Retract altitude
Approach and return in Z	Return altitude
Macro	Macro	Lead in angle
	Lead in length

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Feedrate/tooth	Spindle direction
	Level	Spindle speed
	Feedrate	Plunge feed
	Sp. speed range	Coolant number
	Specific coolant
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compensation number	Diameter compens. Nb
Users Fields	Comment	Control Device
Users Fields	Milling Set

Options Parameters

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Curves Computing	Curve tolerance	Curve segmentation
Top, Bottom and Sides	Top: Radius/Height	Top: Chamfer angle
	Side: Taper	Side: Scallop value
	Bottom: Radius/Height	Bottom: Chamfer angle
