Cycles: Z repeat Facing, Facing Pocket
|
▶️ You can watch a video at the bottom of page: click here |
The management of cavity enables 2 situations:
-
the facing toolpath is calculated so that it avoids the cavity,
-
the facing generates rapid motions through the cavity (Fmax).
To make it possible:
-
the cavity must be selected as an island,
-
the altitude of island must be defined lower than the cavity bottom altitude!
On the example, Z-20 is lower than Z0.
|
Avoid mode: |
Feed Through: |
|
|
|

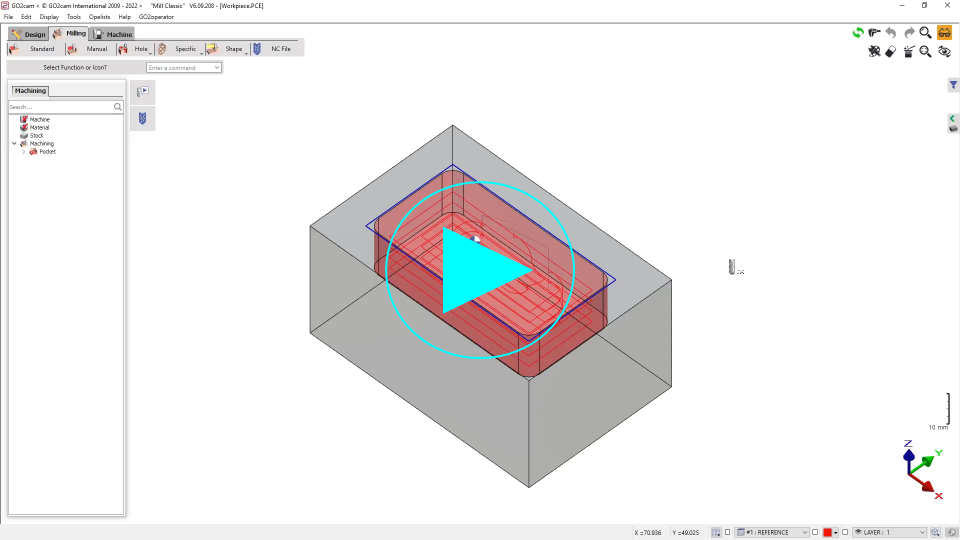

▶️ You can watch a video about the parameter Cavity:
