PAM

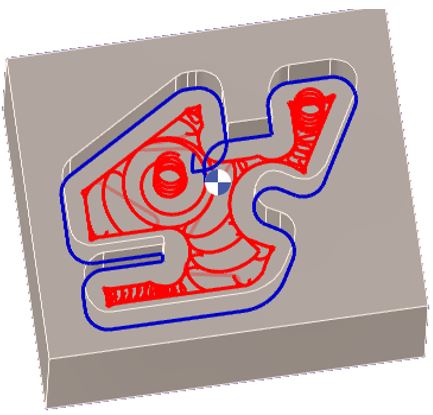

PAM is a roughing toolpath which anticipates the finishing operation, with purpose to ensure a constant engagement angle in finishing.

Explore the advantages and patent information by clicking here.

Key Points

you can check that the tool engagement angle in finishing is always 38°, in straight line and in any convex and concave corner!
To do so, the roughing PAM calculates a variable allowance all along the toolpath.

Strategy Parameters

Dialog Area	Parameters
Toolpath Strategy	Maxi thickness(h)	Clearing area
	Type of clearing	Remaining thickness
	Organization	Radii on contour
Preparing the finishing	Tool diameter	Remaining material
Undercut and Reworking	Undercut machining	Island reworking
Undercut and Reworking	Scallop reworking	Scallop value
Stock Calculation	Stock	Reference diameter
Stock Calculation	Reference radius
Limitation of Machining	Limitation Area	Mini machining area
Limitation of Machining	Total offset for tool clearance
Stepover Calculation	Stepover (Tool ratio)	Stepover value(Ae)
Stepover Calculation	XY Scallop	Respect of scallop
Z Step	Z Step (Ap)
Allowances	XY Stock allowance	Z Stock allowance
Allowances	List of altitudes

Movement Parameters

Dialog Area	Parameters
Safety (in Z)	Rapid plane alt.	Safety distance
Approach and return in Z	Approach altitude	Retract altitude
Approach and return in Z	Return altitude
Z Plunge	Plunge	Mini helix rad.
	Mini ramping rad.	Mini rad mach area
	Plunge angle
Management of rapids	Motions	Fmax safety distance
Management of rapids	Rapid/Fmax %
Safety (in XY)	XY safety distance	SD/Tool shank
Safety (in XY)	Management of toolholder

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Feedrate/tooth	Spindle direction
	Level	Spindle speed
	Feedrate	Plunge feed
	Rotation speed for plunge	Sp. speed range
	Coolant number	Specific coolant
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compensation number	Diameter compens. Nb
Users Fields	Comment	Control Device
Users Fields	Milling Set

Options Parameters

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Toolpath Optimization	Rework Area Tolerance	Feedrate adjustment
Curves Computing	Curve tolerance	Curve segmentation
Toolpath Computing	Decomposition of arcs of toolpath	Arcs decomposition tolerance
