XY Step - Ae

Cycle: Chamfering

Definition

Definition of the pass in the XY plane.

Enter a XY increment value, the number of passes depends on the Width defined. The first passes respect the increment, the last pass is calculated by GO2cam.

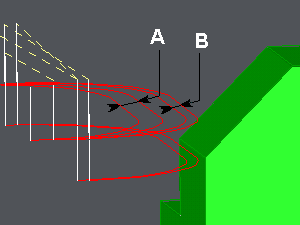

In the following example:
Width = 10 mm
XY increment (A) = 4 mm

There are three passes, two passes with a 4 mm increment (A), the last one with a 2 mm increment (B) calculated by GO2cam.
