The profile selection process is an important step in the programming stage. It determines the region to apply a machining process, the direction of machining, the depth and subsequently, the types of toolpaths to use, etc.
Changing the direction of machining is sometimes desired and there are three easy methods in GO2cam to do that:
The Information button (white arrow) is also used to select an existing profile and make it current. For an illustrated overview, see Selection Commands and Options. The methods below explain its use for reversing profile direction after validation.
|
During profile selection - The currently selected profile can be directly inverted by clicking the icon in the selection popup dialog. |
|
|
|

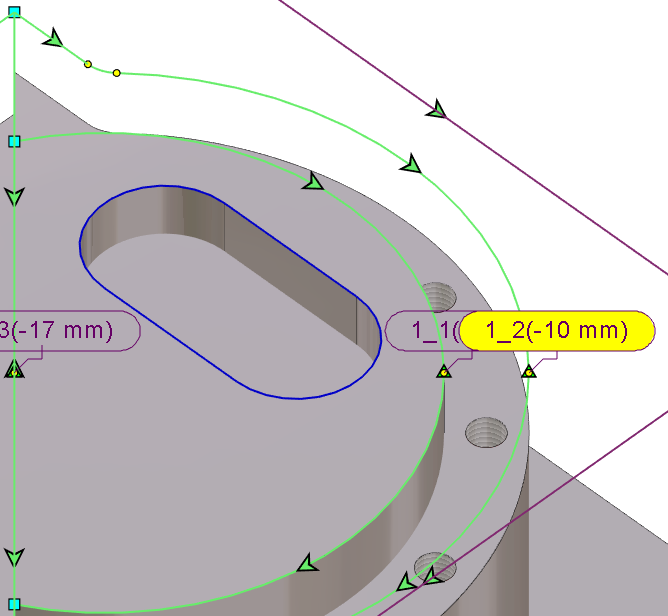

After validation of profiles - click on the Information button (white arrow)

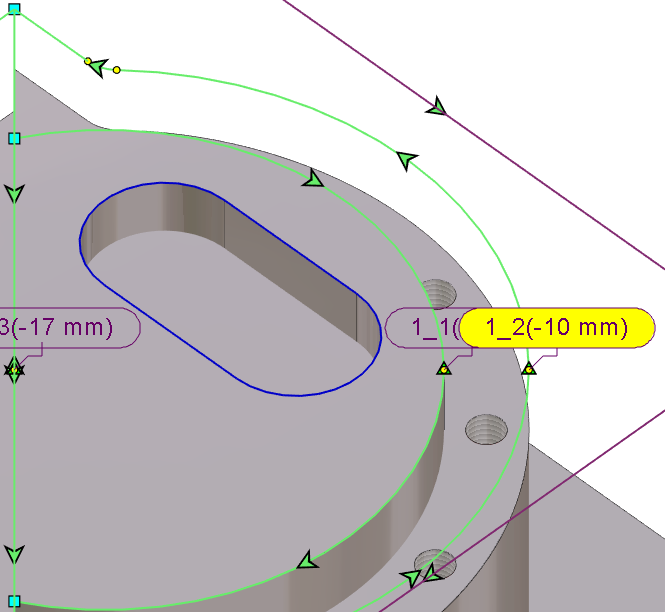

and then individually click the profile itself or the profile label to invert it. |
|
|
|

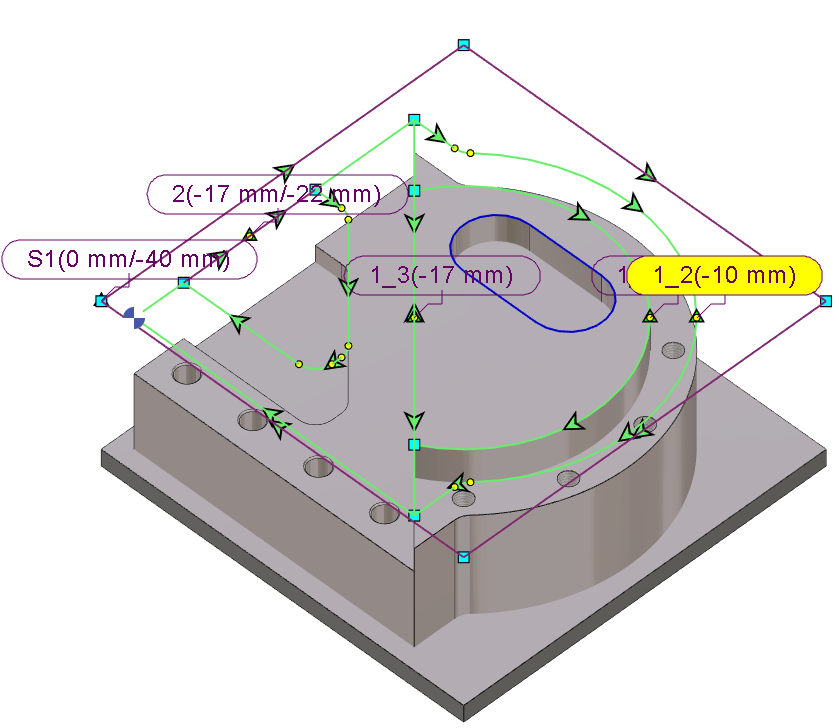

After validation of profiles - click on the Information button (white arrow) and then right-click in the background and select Invert All on the pop-up.
This will invert the direction of all the current defined profiles without having to individually choose each one of them. |
|
|
