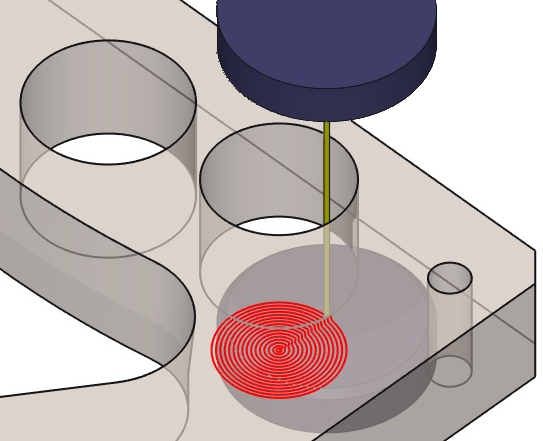

This toolpath is dedicated to the machining of cavities, it removes material by complete disintegration. It is computed on the wire center, machining is carried out on straight shapes only (the wire remains vertical).

Key Points

This cycle offers many technical options:

ability to add increment between each pass using the Wire Offset option.
Ability to add a stock allowance according to the maxi diameter inside the pocket.

Strategy Parameters

Dialog Area	Parameters
Toolpath	Stepover	Stock allowance
Toolpath	Wire Offset	Roughed Area

Movement Parameters

Dialog Area	Parameters
Approach / Return	Distance of auto threading	Enable the outside threading

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Feed rate	Number of angle register
	Coolant number	Offset number
	Setting number	Offset
		Quality
User Fields	Machine quality	Comment
User Fields	Control Device	Machining Set

Options Parameters

Dialog Area	Parameters
Options	Height of plane	Segmentation
	Upper guide height	Material height
	Lower guide height
Curves Computing	Curve Tolerance	Explode curve in
