V612 (help) About Templates and Tools - Opelists

Change / Create Tool

1 - Create tool inside library

2 - Edit OPL

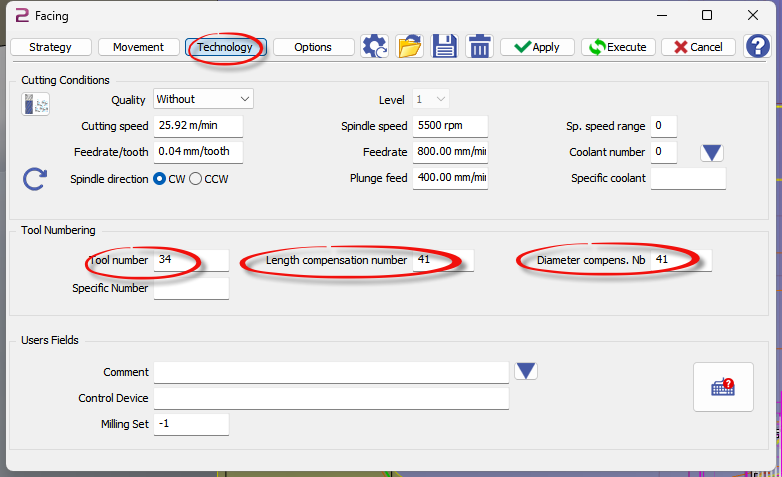

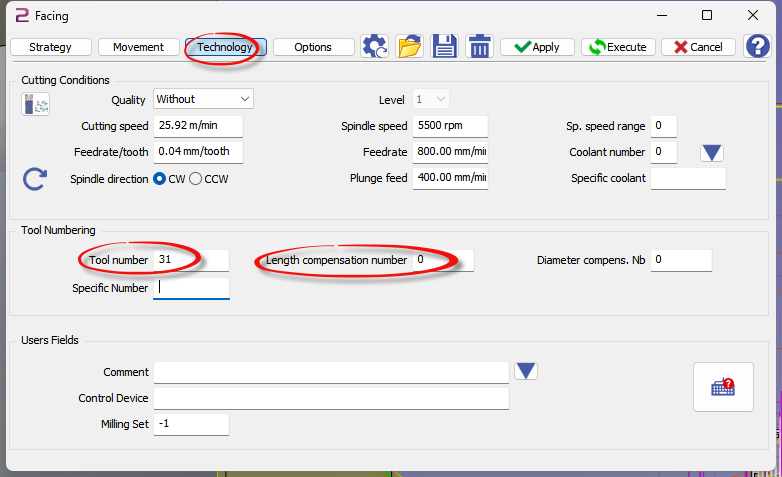

3 - Inside OPL put the correct tool numer and if needed add correct number for tool length compensation

	T3441 M36 S5000 G17 M8 G0 C0. X20. Y0.006 T41

	T3100 M36 S5000 G17 M8 G0 C0. X20. Y0.006 T31

Tool Path

Roughing

Reference (Geometry selection)

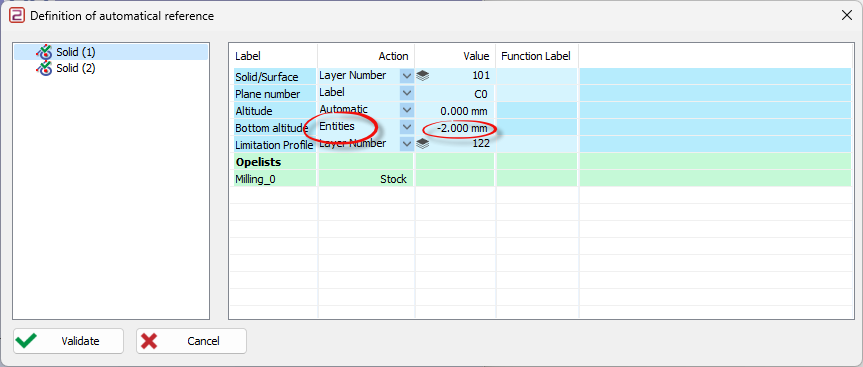

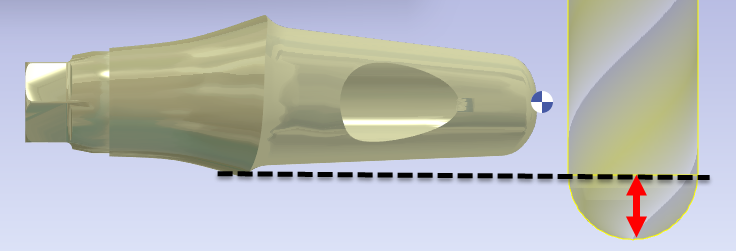

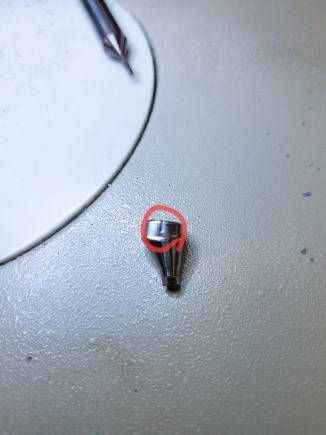

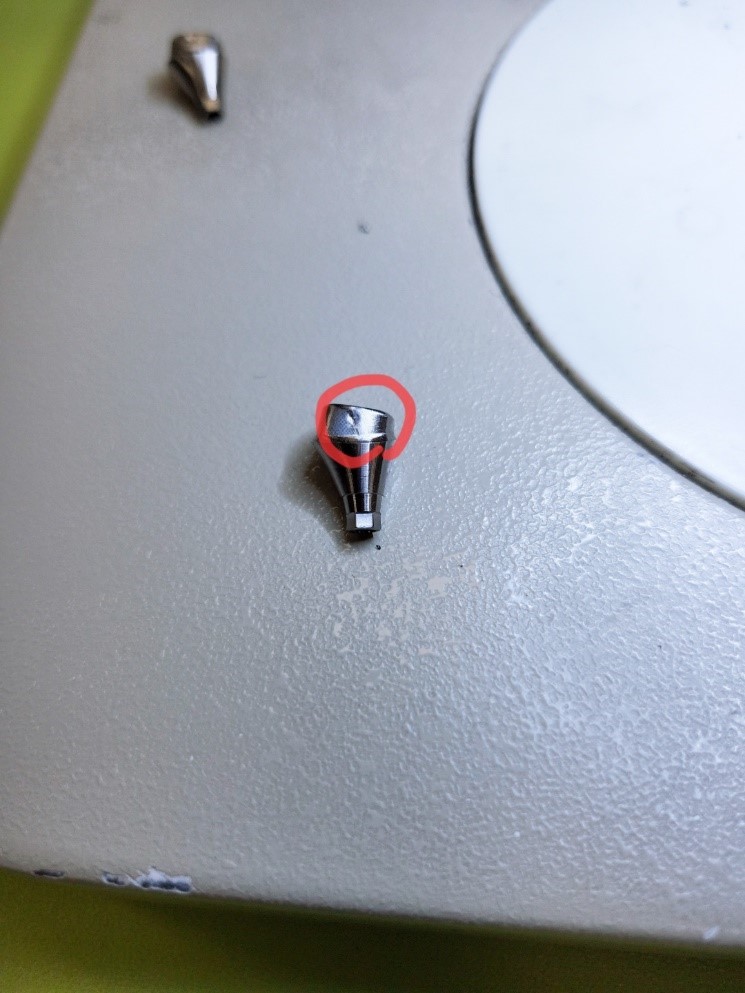

Bottom Altitude = ENTITY Value must be Tool radius

Correct placement minimum Z depth

Not correct many pass in Z

Stategy TAB	Movement TAB	Options TAB
Automatique stop on the parting line.	Rapid.Fmax % = 1 to have maximum of G0 for link between 2 path	Value = 0.1 Here the stock is after turning operation so stock is very smooth no need to have small tolerance
Force the toolpath to start from outside to inside
To avoid retract mouvement. Tool work area by Area

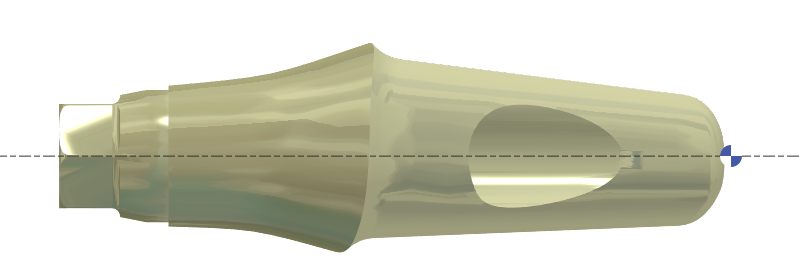

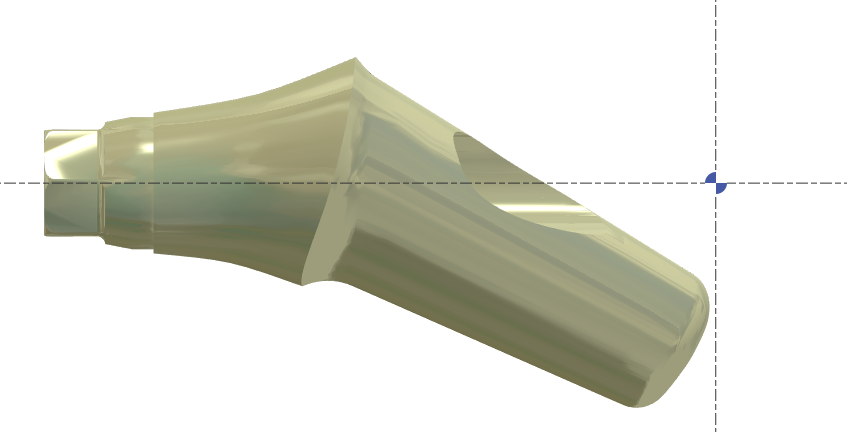

4Xs

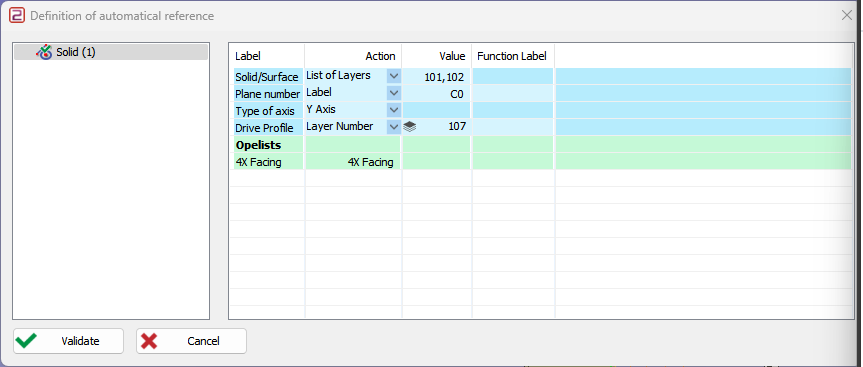

Automatic reference:

101: STL file + RED Cylinder to protect Connectic area

102: SOLID at the back to avoid to tuch occlusal face

107: Guide line used for 4Xs tool path - length can be adjust inside setting

Options TAB
Curve tolerance = 0.01	Curve Tolerance = 0.1

Edit Drilling OPERATION

	..\opelist\casm\02_Drilling
Right click to have the menu then “Strategy Edition”	Click on the Icon in red
Change your NC codes – then save it	Save the file in: ..\opelist\casm\02_Drilling

Edit Connecting Area OPERATION

	..\opelist\casm\08_Connecting Area
Right click to have the menu then “Strategy Edition”	Click on the Icon in red
Change your NC codes – then save it	Save the file in: ..\opelist\casm\0 8_Connecting Area

Change TOOL - Process will be change if no MTE

1 – Create your new tool in the DATABASE

2 – Inside MTE LOAD your tool

3 – Save FMO

4 – New file to check if tool is in the machine

5 – Edit OPL back turning and change tool (you can replace previous OPL or create new one)

Follow video!
