Creation of Components


The creation process for tools, symbols, machine, etc. has become more fluid with the interactive system of axes.

  • The arrow - inverts the selected axis orientation

  • The letter - allows the repositioning of the selected axis to a different direction

  • The origin - allows to relocate the system of axes to another origin.

▶️ Watch a video on the creation process.

Help - Symbols Creation with Interactive axes-20250218-061726.png

By components, reference is made to machine elements for lathes, such as chucks and jaws, as well as clamping elements for milling centers. The following outlines the procedures to be followed for some of these components:

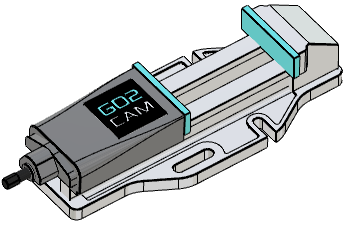

Vice with a Single Mobile Jaw

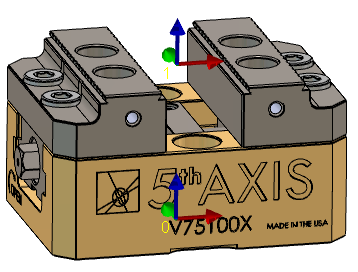

Vice with 2 Mobile Jaws

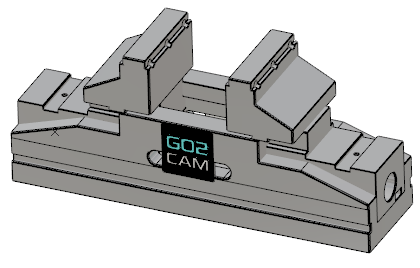

Vice with Multi-Tightening
