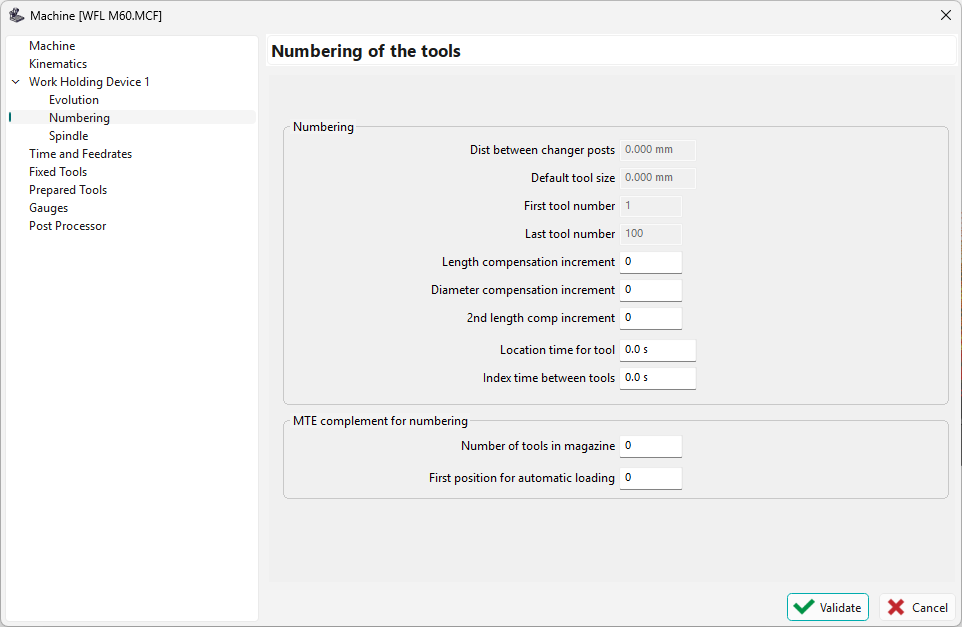

Numbering of tools
Note: Some of these parameters are specific to milling machines and do not apply to turning. Parameter naming may also differ in some cases.
|
|||
|
Length compensation increment |
Refers to adjustment for length variations |
||
|
Diameter compensation increment |
Refers to adjustment for Diameter variations |
||
|
2nd length comp increment |
A secondary adjustment for tool length compensation, used when a machine setup requires two sets of length offsets for precise machining. |
||
|
Location time for tool |
Fixed time for tool change |
||
|
Index time between tools |
The time it takes for the machine to move or rotate the toolholder from one tool position to the next during a tool change. |
||
|
Number of tools in magazine |
To adjust the number of tools in a magazine, simply modify the designated field on the machine numbering page. If this field is left empty (or set to zero), the system will automatically use the number of tools defined in the original MCG file.
|
|
|
|
First position for automatic loading |
A new field added in the machine numbering settings to allow you to start automatic tool numbering from a specified position. This enables you to reserve free positions in the magazine. |
|
