Swiss Turning Tool Manufacturer - STTM Option

The STTM module is targeted for Swiss turn machine shops who manufacture their tools in-house and Form tool manufacturers who sub-contract for Swiss turn machine shops.

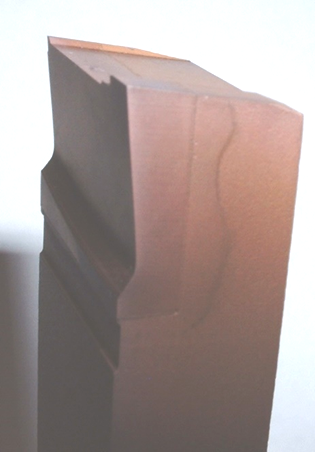

This module enables to manufacture specific shape tools for swiss Machining and is an option of Wire-cut EDM. The STTM is a special menu in Design called ‘Swiss Machining’.

Only 10 minutes are necessary to design the tool ready to be machined with excellent precision, a great time saver for the user!

The advantages of the module are listed below:

• Precision

  • Exact profiles

  • Positions of the tools on the machine tool

• Time savings

  • With GO2cam: 10 minutes to design a tool

• Parametric and associative

  • Modification of the geometry of the tool

• Rapid to learn

  • Less than one day training

• Import files from your customer

  • 2D and 3D files

• Production of your tools inhouse

  • Reactivity

  • Management of tool stock

• A complete Wire EDM software :

  • Parametric CAD

  • 2 & 4 axis cutting, Pocketting

  • Proven Post processors

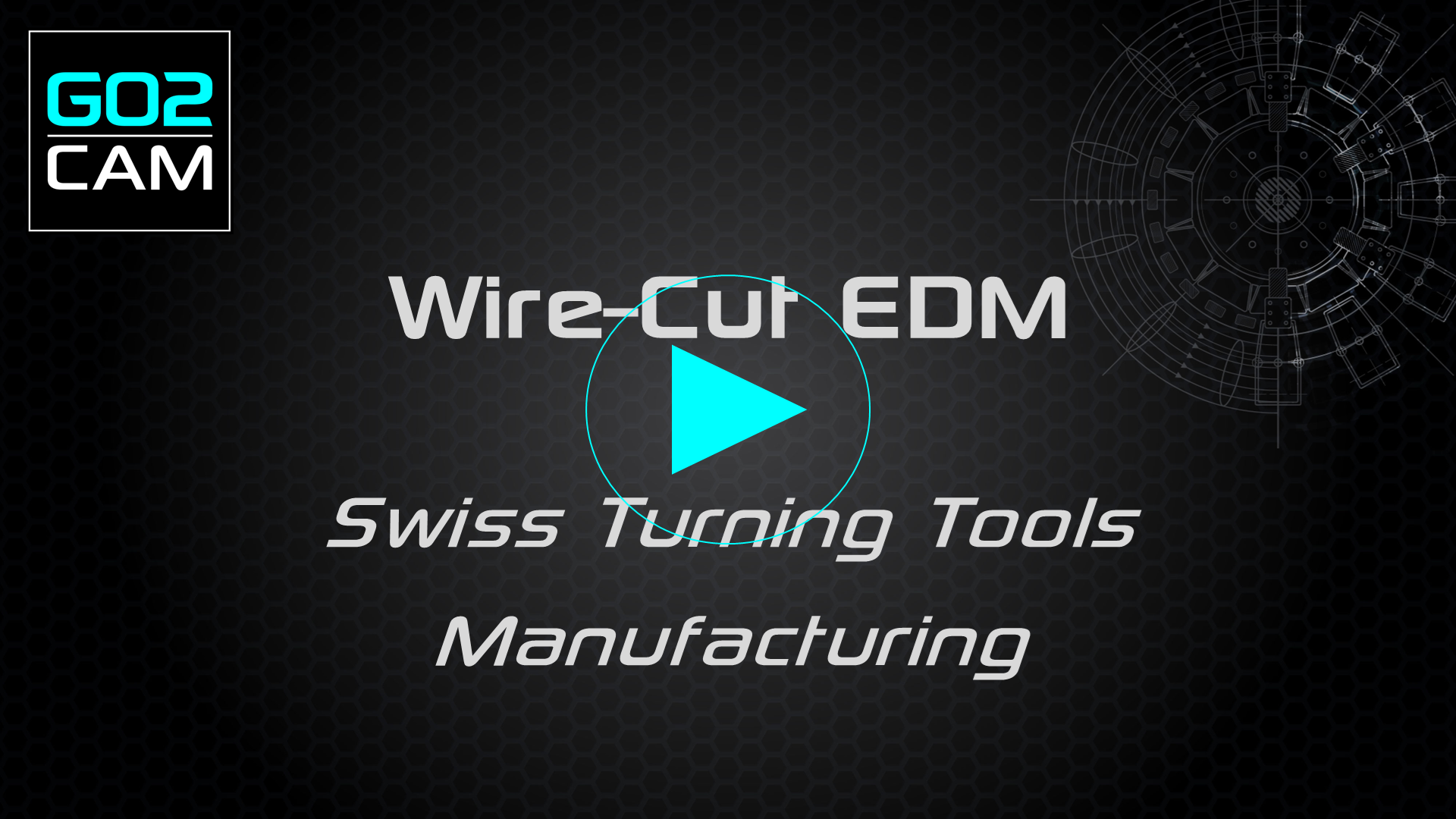

Watch a video below of an example of the process in GO2cam.

The STTM is composed of 2 easy and automatic commands:

[1] Creation of cutting edge profile

[2] Creation of the whole tool.

After this, program a 4 axes cutting cycle to machine the tool.
