Cast - Rough Reworking

The Cast rework cycle allows you to rework the part, but based on the same principle as the Cast roughing. The rework is based on a cast block, with profile parallel to the part.

Key Points

You must enter the thickness between the part and the cast block.
The parameters for rework allow you to define on which type of section of the part there will be reworks.
The Scallop value desired after the rework is to be entered.

Cast Image 02.png

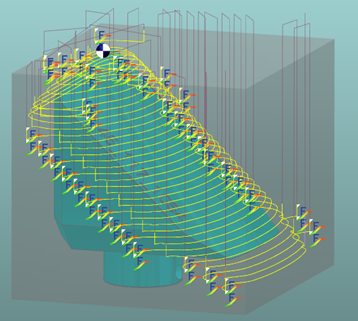

Cast Image 01.png

Strategy Parameters

Dialog Area	Parameters
Toolpath Strategy	Machining Direction	Machining Method
Toolpath Strategy	Optimization
Limitation of Machining	Limitation Area	Mini machining area
Limitation of Machining	Total offset for tool clearance
Undercut and Reworking	Undercut machining	Island reworking
Undercut and Reworking	Scallop reworking	Scallop value
Cast stock	Thickness
Stepover Calculation	Stepover (Tool ratio)	Stepover value (Ae)
Stepover Calculation	XY Scallop	Respect of scallop
Z Step	Z Step (Ap)
Allowances	XY Stock allowance	Z Stock allowance
Allowances	Normal stock allowance
List of altitudes	List of altitudes

Movement Parameters

Dialog Area	Parameters
Safety (in Z)	Rapid plane altitude	Safety distance
Approach and return in Z	Approach altitude	Retract altitude
Approach and return in Z	Return altitude
Z Plunge	Plunge	Mini helix rad.
	Mini ramping rad.	Mini rad mach area
	Plunge angle
Management of rapids	Motions: Rapid, G1 Fmax, G0/G1 Fmax	Fmax safety distance
Management of rapids	Rapid/Fmax %
Safety (in XY)	XY safety distance	SD/ Tool shank
Safety (in XY)	Management of toolholder

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Feedrate/tooth	Spindle direction
	Spindle speed	Plunge feed
	Feedrate	Sp. speed range
	Specific coolant	Coolant number
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compensation number	Diameter compens. Nb
Users Fields	Comment	Control Device
Users Fields	Milling Set

Options Parameters

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Toolpath Optimization	Rework Area Tolerance	Treat maxi stepover
	Feedrate reduction coef	Maxi stepover coef
	Type of HSM radius	Radius of HSM loop
	Radii on contour
Curves Computing	Curve tolerance	Curve segmentation
Toolpath Computing	Decomposition of arcs of toolpath	Arcs decomposition tolerance
Cooling	Loop radius	Distance between loops
