Cycles: 4X Facing, 4X Spiral
|
▶️ You can watch two videos at the bottom of page: Click here |
Definition
You can define the toolpath with a shift on the profile of limitation.
|
If you defined a geometric limitation, set the option to 'Island only' or 'All'. The shift is done on the limitation profile. |
Island Only |
All |
|
|
If you defined an axial limitation, set the option to 'Line' and define starting and ending distances. The shift is done at each extremity of axial limitation. |
Line |
|

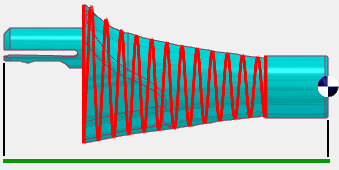

In the following part, the starting distance is -11 mm and the ending distance is -14 mm.
|
|
|
You can watch a video on Facing Shift:
|
You can watch a video on Spiral Limitation Shift:
|
