Drilling reaming

This cycle is a drilling operation programmed with a reaming tool.

Key Points

The purpose is to have one only tool for the drilling and the roughing and consequently, one tool number in the machine.

The drilling operation is done according to the diameter defined in the tool page.
The reaming operation must be programmed afterwards by the user, with the same tool.

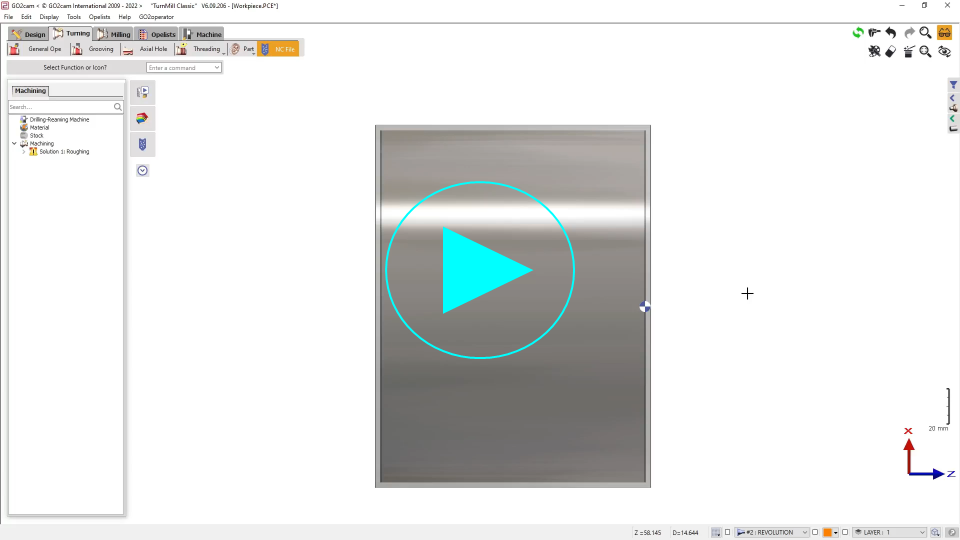

▶️ You can watch a video on drilling reaming cycle:

Program a Drilling-Reaming method 2.png

Strategy Parameters

Dialog Area	Parameters
Toolpath	Toolpath	Imaginary nose Number
Extra Options	Dwell	Final dwell
Extra Options	Dwell unit
Machining Strategy	Drilling	Drilling Depth
	Lead out distance	Pass Depth
		Last pass depth

Movement Parameters

Dialog Area	Parameters
Approach and Return Characteristics	Safety distance

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Spindle speed
	Cutting speed	Feedrate in Z
	Speed range	Spindle direction
	Feedrate	Maxi spindle speed
	Coolant number	Specific coolant
Tool Numbering	Tool number	Specific Number
Tool Numbering	Radius compensation number	Length compens. nb
User information	Comment	Control Device
User information	Machining Set

Options Parameters

Dialog Area	Parameters
Management of collisions	Gouge check on stock	Offset XY
Management of collisions	Safety Area	Offset Z
