Die Threading

This cycle is very similar to a tapping operation but this one is done for a shaft shape.

The tool used are thread dies.

die threading1.png

Key Points

creation of thread with one pass and one specific tool
very simple to set up: select one profile (usually one segment of shaft), and define the length of machining in the strategy; if you let this length to 0, the whole profile is machined.
no need to back the part in the guide bush
no radial effort on part

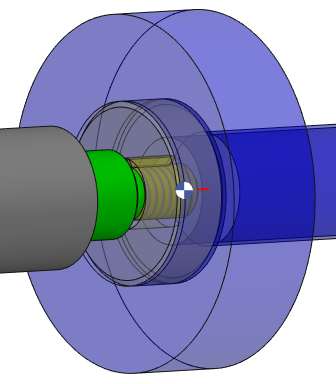

die threading2.png

Strategy Parameters

Dialog Area	Parameters
Machining Strategy	Lead out distance	Rigid
	Final dwell	Threads length
	Dwell unit	Lead in distance

Movement Parameters

Dialog Area	Parameters
Approach and Return Characteristics	Safety distance

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Spindle speed
	Cutting speed	Feedrate in Z
	Speed range	Spindle direction
	Feedrate	Feedrate per tooth
	Coolant number	Specific coolant
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compens. nb
User information	Comment	Control Device
User information	Machining Set

Options Parameters

Dialog Area	Parameters
Management of collisions	Gouge check on stock	Offset XY
	Safety Area	Offset Z
	Safety distance in Z for rapids	Safety distance in X for rapids
