Chamfering - Turning


One only toolpath following X, Z, or XZ axes. The angle of chamfer is determined but the insert of the tool used.

Key Points

  • Selection of geometry

2 cases are possible:

  • the chamfer is designed: click one of the 2 points, define the pass depth=0 in the strategy,

  • the chamfer is not designed: click the angle point, define the pass depth value in the strategy. This depth is the direct distance from the point to the chamfer face!

Choose carefully the insert of the tool:

  • the angle of chamfer is given by the angle of insert

  • the cutting edge of insert must be long enough.

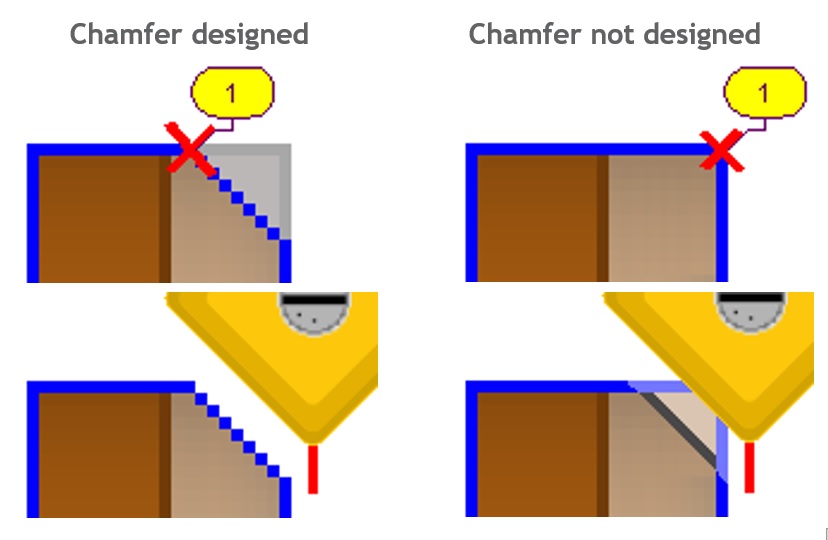

Chamfering (Turning).jpg

Strategy Parameters

Dialog Area

Parameters

Toolpath

Toolpath

Imaginary nose Number

Machining Strategy

Machining depth

1st rapid retract

Final dwell

Dwell unit

Movement Parameters

Dialog Area

Parameters

Approach and Return Characteristics

Safety distance


Technology Parameters

Dialog Area

Parameters




Cutting Conditions

Quality

Cutting Speed

Spindle speed

Speed range

Feedrate in Z

Feedrate

Spindle direction

Maxi spindle speed

Coolant number

Specific coolant

Tool Numbering

Tool number

Specific Number

Radius compensation number

Length compens. nb

User information

Comment

Control Device

Machining Set


Options Parameters

Dialog Area

Parameters

Management of collisions

Gouge check on stock

Offset XY

Safety Area

Offset Z

Safety distance in Z for rapids

Safety distance in X for rapids
