Threading - Turning

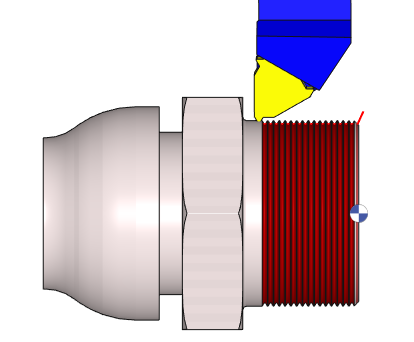

This threading operation generates a cylindrical or a conical threading while the profile threading can can follow an evolutive profile.

Key Points

You can define threading on a complete element or define a blind threading.
several types of infeed are given: flank, incremental, radial, opposite flank.
the machining depth and number of passes is calculated automatically by respect of ISO standard according to the pitch and number of threads.
When the threading is defined on slopes, you can define:
- a direct return (Normal option)
- a safe return (Horizontal option).

Strategy Parameters

Dialog Area	Parameters
Toolpath	Infeed type	Return type
Toolpath	Back turning
Pitch and Passes	One page gives the explanation for those parameters: click here Calculate pass, Machining Depth, Pitch 1st pass depth, Nb of threads, Last pass depth Stop before extra passes, Nb of passes, Nb extra passes
Machining Strategy	Lead out distance	XY Stock allowance
	End chamfering distance	Threads length (0=element selected)
		Lead in distance

Movement Parameters

Dialog Area	Parameters
Approach and Return Characteristics	Safety distance in Z	Safety distance in X

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Spindle speed
	Cutting speed	Feedrate in Z
	Speed range	Spindle direction
	Feedrate	Maxi spindle speed
	Coolant number	Specific coolant
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compens. nb	Radius compensation number
User information	Comment	Control Device
User information	Machining Set

Options Parameters

Dialog Area	Parameters
Management of collisions	Gouge check on stock	Offset XY
	Safety Area	Offset Z
	Safety distance in Z for rapids	Safety distance in X for rapids
