Safety Distance in Z and X
Cycle: Roughing, TurnyuGO, //Roughing, Balanced Roughing, All Grooving cycles, Threading, Profile thread., Roughing of a screw, Finishing of a screw, Pecking, Toolpath
Definition

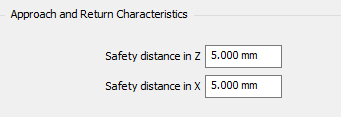

This option allows you to define safety distance in Z and X in the Approach or Return phases.
Safety Distance in Z

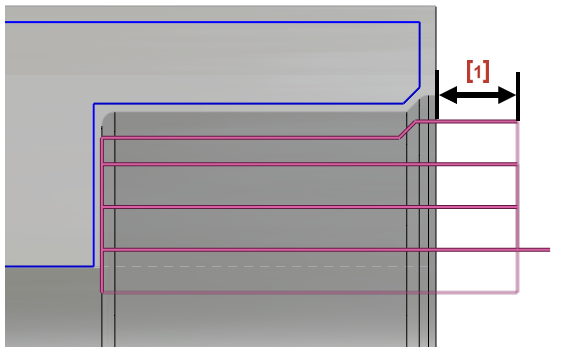

The Safety Distance [1] is calculated according to the stock. As shown in the image on the right, a distance of 5 mm is kept from the stock. |  |
Safety Distance in X

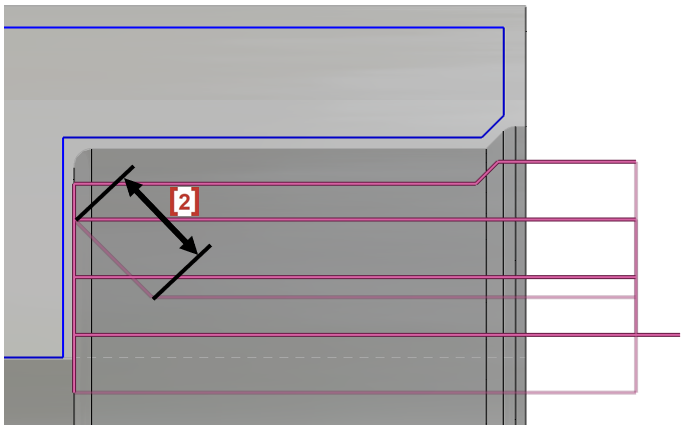

The Safety Distance [2] is calculated according to the stock. As shown in the image on the right, a distance of 5 mm is kept from the stock on the last toolpath. |  |

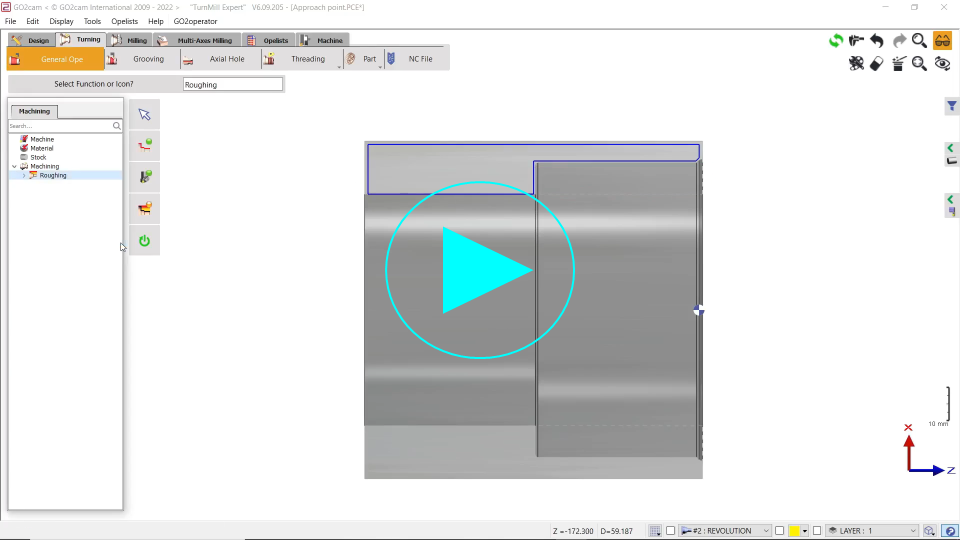

▶️ You can watch a video on defining Safety Distances in Z and X axes in movement tab:  |
