Edit Wireframe Geometry

This command enables to modify a geometric element already designed.

Several ways to accede to ‘Edit element’:

choose Edit element in the text menu Edit
right-click on the chosen element, then choose Edit element in the popup menu
right-click on the background, choose Edit Element in the popup menu then click the element to modify.

GO2cam implements parametric design principles in the creation process. As a geometrical element is created, the history of creation is kept in a database. This methodology makes it possible for the selected element to have a link to all construction previously made.

Parameterizing is a powerful functionality of GO2cam, you can find more information about it by clicking here!

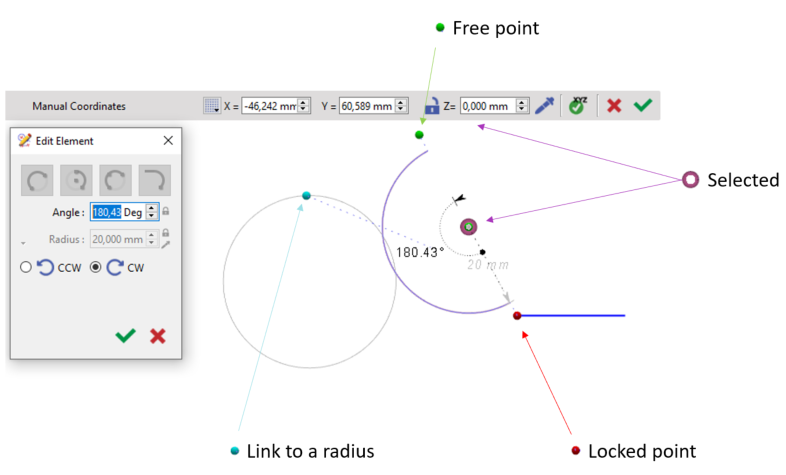

The parametric relationships between the elements in 2D geometry is defined by a series of points that can be manipulated to modify the entity as shown below:

Link [Blue]	Linked to another radius and will reflect any changes carried out on the original. This link can be broken by clicking on the lock icon upon selecting it.
Locked Point [Red]	The initial point through which all others are linked. Displacing this point will move the whole structure.
Selected [Purple Outline]	The current point that is selected.
Free Point [Green]	Can be moved freely without affecting the other points.

Radius of an Arc

Below are the steps to edit the arc element:

Right-Click on the Element to edit
Select Edit Element.

Type in the new value in the radius field.
Click on the green tick to validate.

▶️ You can watch a video on editing the radius of an arc:

Editing a Fillet

Below is an example video showing how to edit a fillet.

▶️ You can watch a video on editing a fillet:

Color of Editing Element

As from V6.11, the colors of an element being edited and the elements after are distinct. These colors can be user defined in Tools> options> Theme.

For more information, check the page Theme.
