Radial Hole

This function allows you to create radial cylinders. The corresponding radial plane is automatically created.

To create a radial hole plane

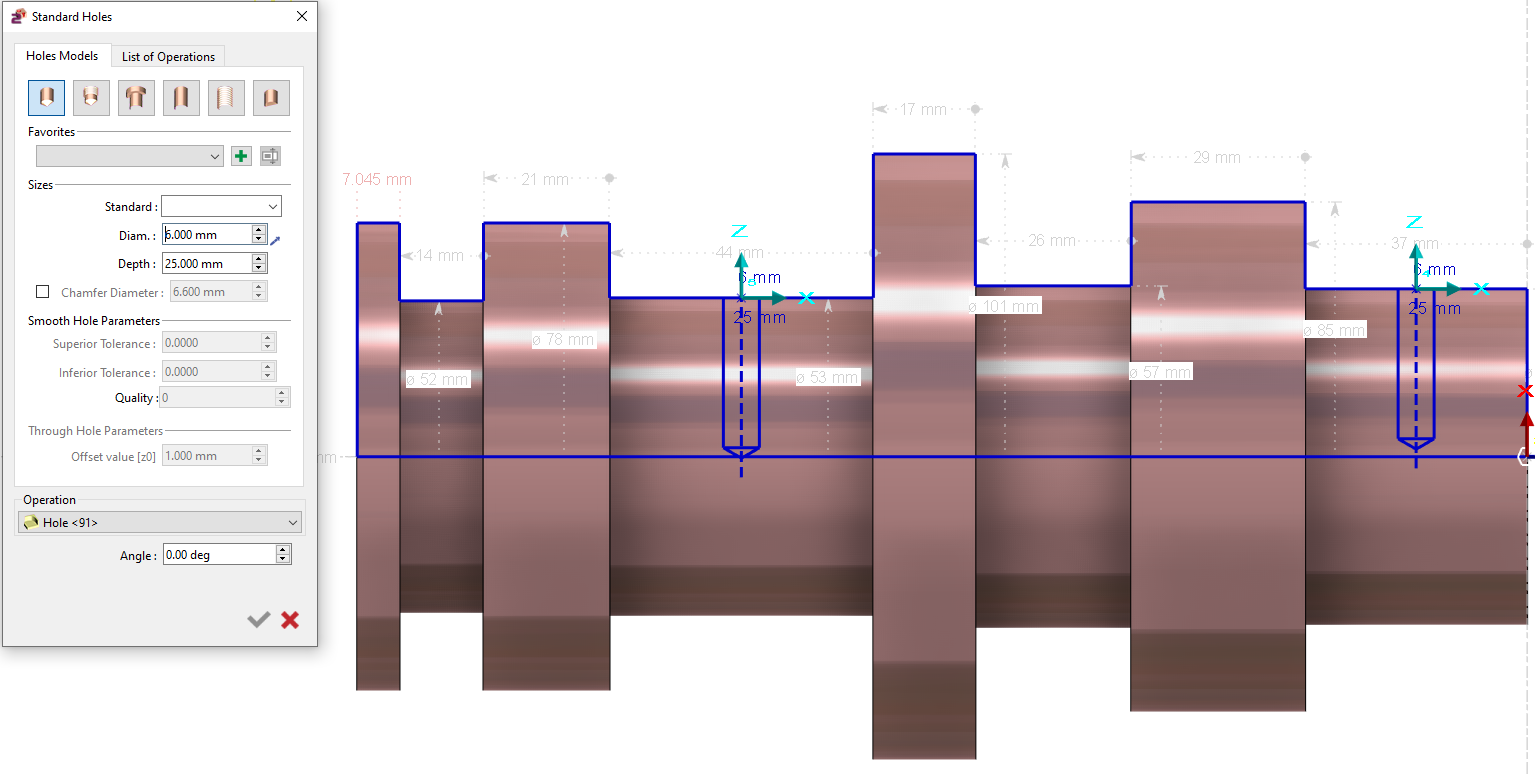

1. Initiate Radial Hole Creation: Select the Radial Hole Creation button to open the Standard Holes dialog box.

2. Configure Hole Parameters: Define the hole specifications (e.g., diameter, depth, angle) using the dialog options.

3. Position Holes on Workpiece: Place the configured hole(s) on the desired locations of the workpiece geometry.

4. Automatic Plane Generation: Upon placement, a corresponding radial hole plane will be automatically generated for each hole positioned on the workpiece.
