Units
Definition
On this page, we define all units of the software.
You can change the Unit system between Metric and Imperial.
Even in the Imperial System, you can customize a unit to have a metric one.
Also, in the tools and techno's libraries, we added the choice of unit (metric or imperial) to manage the case of working with a unit different than the current one.
We have 4 main categories:
|  |
Description and Use
Time and Duration: Duration has been added in the category for Machining units to differentiate with time.
This enables to have the same unit but different precisions, especially in the case for dwell. These are typically within seconds and preferred to have control over the value in milliseconds. |   |
 |

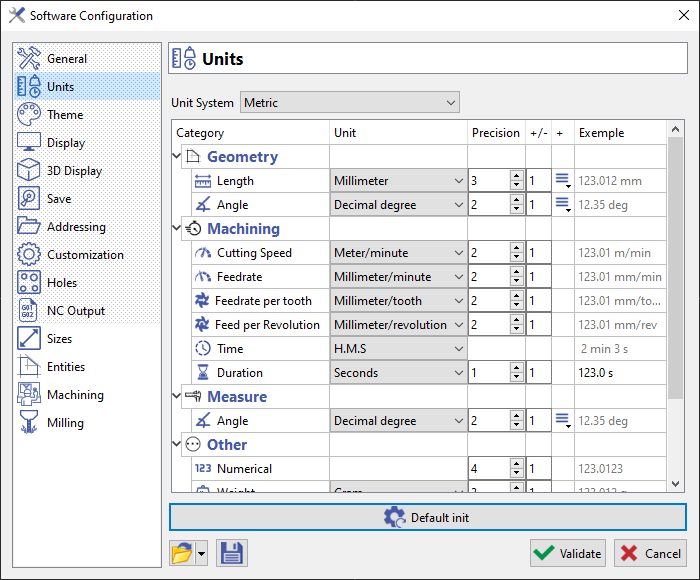

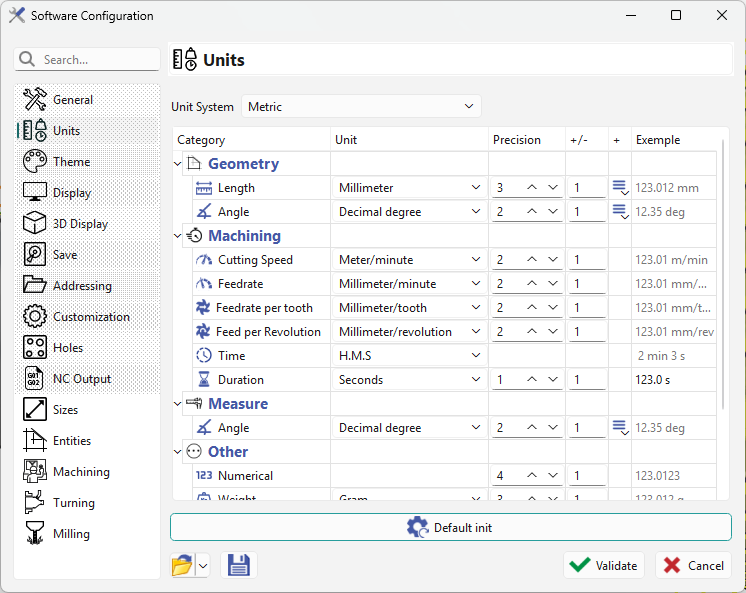

In the following columns:
Category | List of all the units in the software. |  |
Unit | Select the unit among metric or imperial. |  |
Precision | Insert the value for the precision. |  |
+/- (Incrementation Value) | Set a value for incrementation during any operation(Design, Geometry Selection, etc). |  |
|
|  |
Example | Preview of the unit. |  |
▶️ You can watch a video on the Unit System:  |
