Positioning the workpiece against an End stop is mainly used to ensure precise and repeatable axial positioning of the part in the chuck or clamping device. |
Key Points
|
2 actions are possible to manage a End Stop:
The motion can be either in the Z axis or on any axis defined by 2 points.

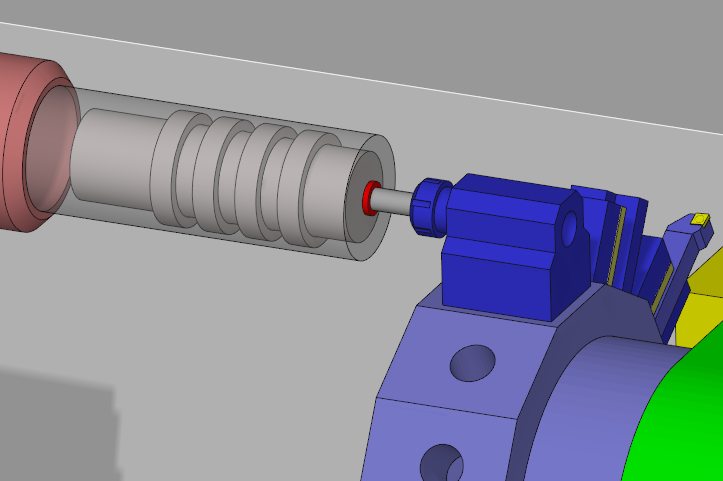

The End Stop is a ‘tool’ with non-cutting part, the contact surface is designed in red.
|
|
Strategy Parameters
|
Dialog Area |
Parameters |
|
|
Machining Strategy |
Toolpath |
Type of action |
|
Clamping Distance |
|
|
Movement Parameters
|
Dialog Area |
Parameters |
|
|
Approach and Return Characteristics |
Safety distance |
|
Technology Parameters
|
Dialog Area |
Parameters |
|
|
Cutting Conditions |
Feedrate |
|
|
Tool Numbering |
Tool number |
Specific Number |
|
Length compens. nb |
|
|
|
User information |
Comment |
Control Device |
|
Machining Set |
|
|
Options Parameters
|
Dialog Area |
Parameters |
|
|
Management of collisions |
||
|
Safety Area |
||
