4X roughing millyuGO

4 Axis roughing millyuGO is a roughing operation programmed in 4 axis simultaneous

Key Points

This 4 axis roughing operation is built on the owned and patented technology millyuGO

Force exerted on the tool is controlled
Tools always cuts within its optimal and designed conditions
Ideal for hard material machining: Titanium, Inconel, stainless steel

Benefits:

Tool life: up to x6 longer
Machining time: reduced by 80%
Production costs: reduced by 50%

This operation cannot be computed on a mesh model!

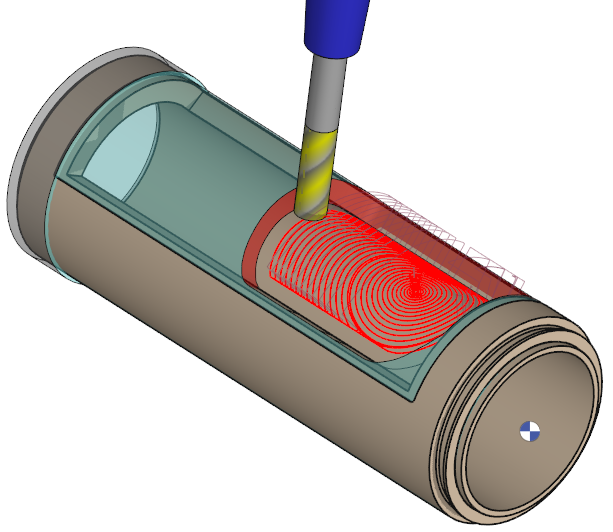

4Xs roughing millyuGO.png

Strategy Parameters

Dialog Area	Parameters
Toolpath Strategy	Machining direction	Optimization
Toolpath Strategy	Radii on contour
Machining Area	Mini machining radius	Maxi Machining radius
Definition of Chip	Engagement angle	Respect of scallop
	XY Scallop	Maxi thickness ( h )
Limitation of Machining	Shift of profile	Shift of value
Limitation of Machining	Starting Distance	Ending Distance
Calculation of Z steps	Z Step (Ap)
Allowances	XY stock allowances	Normal stock allowances
Allowances	Z Stock allowance

Movement Parameters

Dialog Area	Parameters
Safety (in Z)	Rapid plane alt.	Safety distance
Z plunge	Mini helix rad	Mini ramping rad
Z plunge	Mini rad mach area	Plunge angle
Safety	XY safety distance

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Feedrate/tooth	Spindle direction
	Spindle speed	Feedrate
	Sp. speed range	Plunge feed
	Specific coolant	Coolant number
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compensation number	Diameter compens. Nb
Users Fields	Comment	Control Device
Users Fields	Milling Set

Options Parameters

Dialog Area	Parameters
Behaviour on the clamps	Safety area
Curves Computing	Curve tolerance	Curve segmentation
