Profile - Finishing

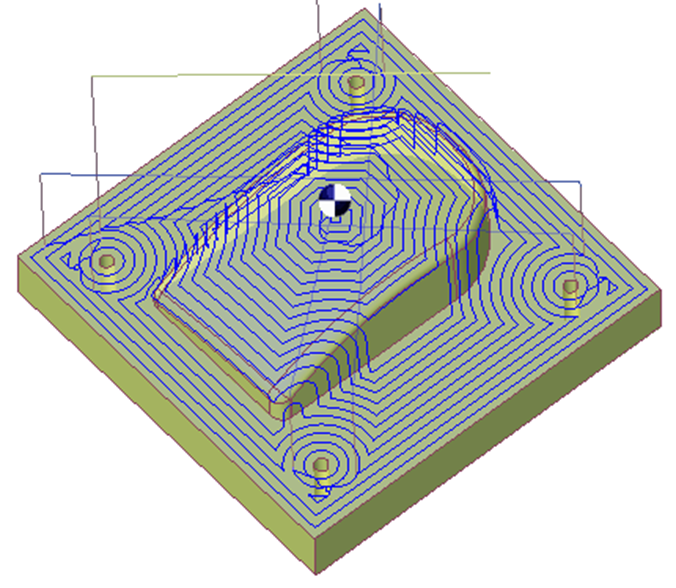

This cycle is logically identical to the parallel plane finishing cycle. The Profile finish works at a constant cutter offset in 2D according to the shape of the machining limitations.

Key Points

The tool machines by rotating as in a pocket.

Choice of machining methods to Start or End by the sides.

Few rapid movements.

Strategy Parameters

Dialog Area	Parameters
Toolpath Strategy	Machining Mode
Limitation of Machining	Machining of the defined area	Width machined
Limitation of Machining	Limitation Area
Stepover Calculation	Stepover (Tool ratio)	Stepover value (Ae)
Stepover Calculation	XY Scallop
Allowances	XY Stock allowance	Z Stock allowance
Allowances	Normal stock allowance

Movement Parameters

Dialog Area	Parameters
Safety (in Z)	Rapid plane alt.	Safety distance
Approach and return in Z	Retract altitude
Safety (in XY)	SD/ Tool shank	Management of toolholder
Leadin and leadout in XY	Lead in length	Lead out length
	Lead in arc radius	Lead out arc radius
	Leadin radius angle	Leadout radius angle

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Feedrate/tooth	Spindle direction
	Spindle speed	Feedrate
	Sp. speed range	Plunge feed
	Specific coolant	Coolant number
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compensation number	Diameter compens. Nb
Users Fields	Comment	Control Device
Users Fields	Milling Set

Options Parameters

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Curves Computing	Curve tolerance	Curve segmentation
