3X Z Level with Facing

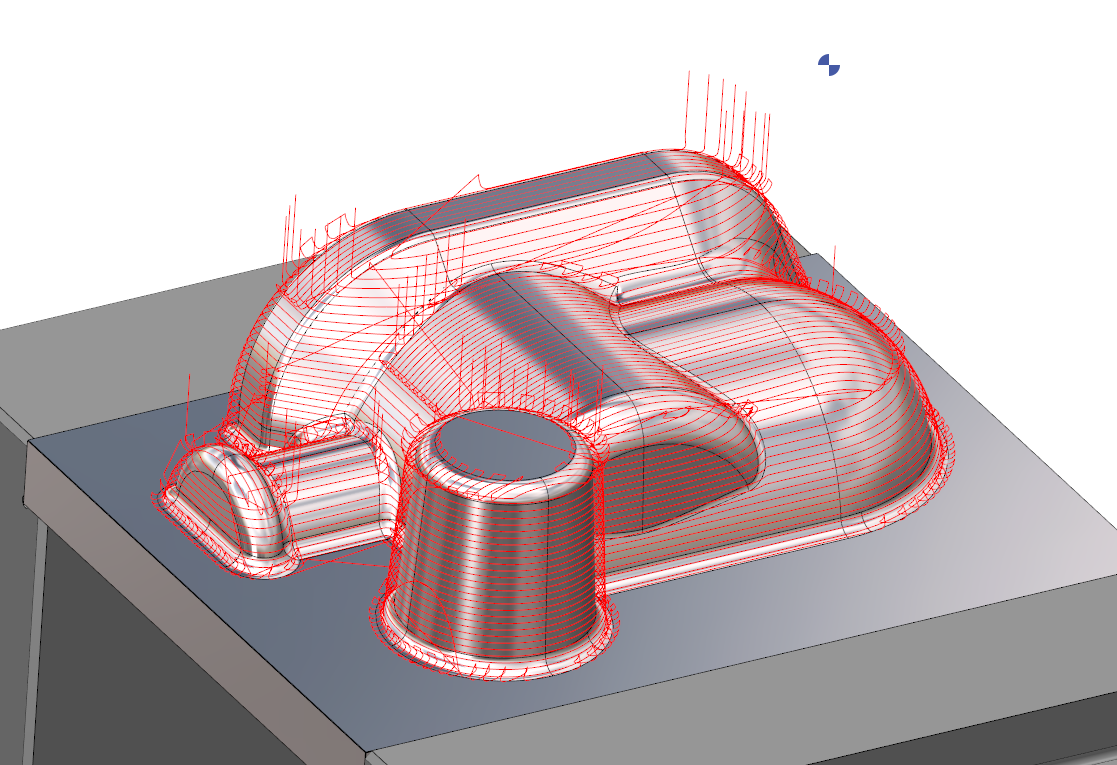

The 3-axis Z-level with facing cycle is a new addition to the 3 axis finishing. It is a hybrid strategy that unifies two distinct cycles parallel plane and Z-level into a single, seamless operation. Like other cycles in this suite, it is multi-threaded, allowing it to calculate efficiently across all CPU threads for significantly faster computing times.

These new cycles identifiable by the blue 3x badge are part of an optional package for 3-axis milling.

Key Points

Faster Computing: The multi-threaded nature of the cycle allows for rapid processing of complex geometry.
Optimized Machining: The cycle is designed to minimize time on the machine by including rework calculations and optimizing tool movements.
Versatility: It allows for the machining of both sloped surfaces and flat faces within the same cycle.

3x Zlevel with facing_play-20260209-101018.png

Strategy Parameters

Dialog Area	Parameters
Toolpath Strategy	Machining Direction	Upwards Machining
	Undercut machining	Edge Rolling
	Optimization	Radii on contour
Reworking by Facing	Automatical angle	Mini angle of reworking
	Angle	Area overlap
	Flat face rework
Limitation of Machining	Limitation Area
Compute of Z Steps	First pass (ApF)	Z Step(Ap)
Compute of Z Steps	Last pass(ApL)	Scallop Value
Allowances	XY Stock allowance	Z Stock allowance
Allowances	Normal stock allowance
Altitudes	List of altitudes

Movement Parameters

Dialog Area	Parameters
Safety	Rapid plane alt.	Safety distance
Safety	Safety on Tool	Tool Control
Approach and return in Z	Transition between levels	Transition between passes
Type of lead in in Material	Pass overlap	Lead in/ Lead out
	Lead in length	Lead out length
	Lead in arc radius	Lead out arc radius
	Lead in radius angle	Lead out radius angle

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Feedrate/tooth	Spindle direction
	Spindle speed	Feedrate
	Sp. speed range	Plunge feed
	Specific coolant	Coolant number
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compensation number	Diameter compens. Nb
Users Fields	Comment	Control Device
Users Fields	Milling Set

Options Parameters

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Curves Computing	Curve tolerance	Curve segmentation
